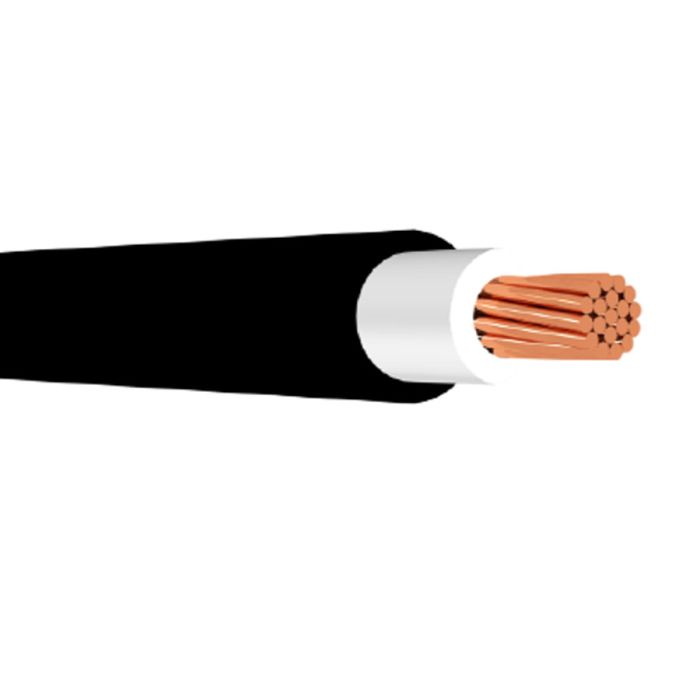

WWC SDI Cable XLPE 1 Core 240mm 0.6/1kV Class 2 Bare Compacted Copper XLPE/PVC Black
WWC SDI Cable XLPE 1 Core 240mm 0.6/1kV Class 2 Bare Compacted Copper XLPE/PVC Black
In stock
SKU
WWC7824XV
Circular XLPE Cable SDI, 240 mm, Class 2 Annealed Copper, 0.6-1 kV, 1 Core, 26.1 mm Overall Diameter, 335 mm During Installation/243 mm After Installation Bend Radius, 1.7 mm Insulation Thickness, X-90 XLPE Insulation, White Insulation, 5V-90 PVC Sheath, Black Sheath, AS/NZS 5000.1
| Brand | WWC |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 7824XV |
| Bend Radius | 335 mm During Installation/243 mm After Installation |
| Conductor Size | 240 mm |
| Conductor Type | Class 2 Annealed Copper |
| Insulation Colour | White |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 1.7 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 26.1 mm |
| Product Type | Circular XLPE SDI |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 5000.1 |
| Voltage | 0.6-1 kV |
Description
Circular XLPE Cable SDI, 240 mm, Class 2 Annealed Copper, 0.6-1 kV, 1 Core, 26.1 mm Overall Diameter, 335 mm During Installation/243 mm After Installation Bend Radius, 1.7 mm Insulation Thickness, X-90 XLPE Insulation, White Insulation, 5V-90 PVC Sheath, Black Sheath, AS/NZS 5000.1
