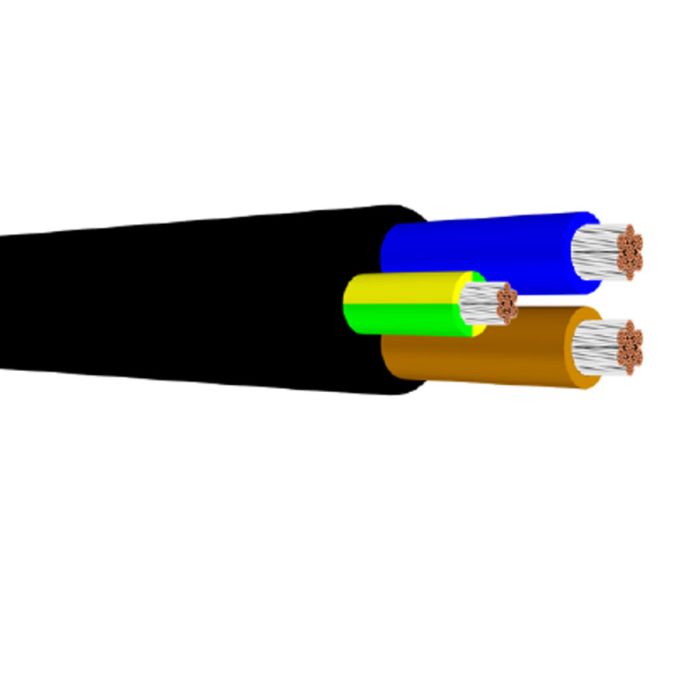

WWC ViperHiTemp Flexible Cable Double Insulated High Temperature 4 Core & Earth 1.5mm 450/750V Silicone +180C Black
WWC ViperHiTemp Flexible Cable Double Insulated High Temperature 4 Core & Earth 1.5mm 450/750V Silicone +180C Black
In stock
SKU
WWC6715
Flexible Cable, Double Insulated, High Temperature, 4 Core & Earth, 1.5 mm, Tinned Annealed Copper, 450/750 Volt, 0.2 mm Strands, 2.9 mm Core Diameter, 9.9 mm Overall Diameter, 49.5 mm Bend Radius, Conductor Resistance: DC - 13.7 Ohm/km, Silicone Rubber Insulation, Silicone Rubber Sheath, Brown Blue Black White Green/Yellow Cores, Black Sheath, -60 to 180 deg C
| Brand | WWC |
|---|---|
| Range Name | ViperHiTemp |
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 6715 |
| Bend Radius | 49.5 mm |
| Conductor Resistance | DC: 13.7 Ohm/km |
| Conductor Type | Tinned Annealed Copper |
| Conductor Size | 1.5 mm |
| Core Colours | Black/Blue/Brown/White/Green/Yellow |
| Core Diameter | 2.9 mm |
| Insulation Material | Silicone Rubber |
| Sheath Colour | Black |
| Overall Diameter | 9.9 mm |
| Number of Cores | 4 Core + Earth |
| Product Type | Flexible Cable High Temperature Double Insulated |
| Sheath Material | Silicone Rubber |
| Stranding | 0.2 mm |
| Temperature | -60 to 180 deg C |
| Voltage | 450-750 Volt |
Description
Flexible Cable, Double Insulated, High Temperature, 4 Core & Earth, 1.5 mm, Tinned Annealed Copper, 450/750 Volt, 0.2 mm Strands, 2.9 mm Core Diameter, 9.9 mm Overall Diameter, 49.5 mm Bend Radius, Conductor Resistance: DC - 13.7 Ohm/km, Silicone Rubber Insulation, Silicone Rubber Sheath, Brown Blue Black White Green/Yellow Cores, Black Sheath, -60 to 180 deg C
