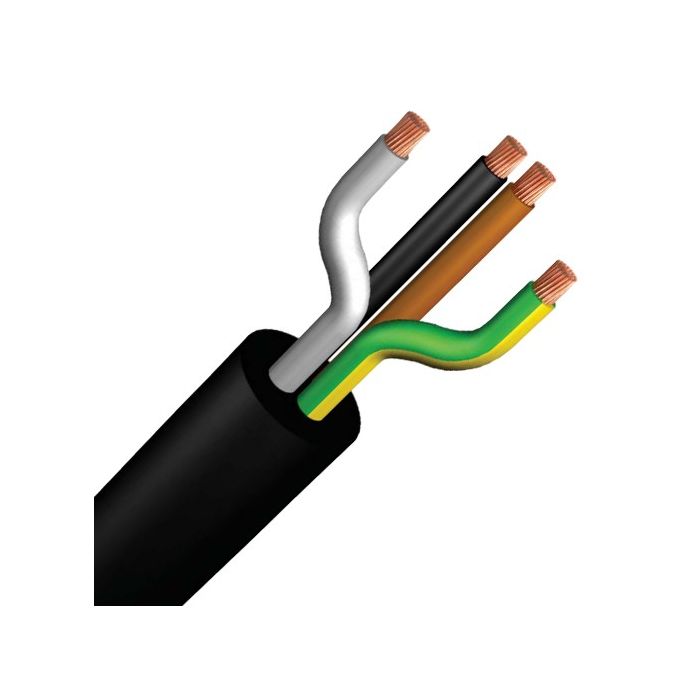

WWC ViperHiTemp Flexible Cable Double Insulated High Temperature 3 Core & Earth 6mm 0.6/1kV Silicone +180C Black
WWC ViperHiTemp Flexible Cable Double Insulated High Temperature 3 Core & Earth 6mm 0.6/1kV Silicone +180C Black
In stock
SKU
WWC6660
Flexible Cable, Double Insulated, High Temperature, 3 Core & Earth, 6 mm, Tinned Annealed Copper, 0.6/1 kV, 0.3 mm Strands, 5.3 mm Core Diameter, 15.7 mm Overall Diameter, 78.5 mm Bend Radius, Conductor Resistance: DC - 3.39 Ohm/km, Silicone Rubber Insulation, Silicone Rubber Sheath, Brown Blue Black Green/Yellow Cores, Black Sheath, -60 to 180 deg C
| Brand | WWC |
|---|---|
| Range Name | ViperHiTemp |
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 6660 |
| Bend Radius | 78.5 mm |
| Conductor Resistance | DC: 3.39 Ohm/km |
| Conductor Type | Tinned Annealed Copper |
| Conductor Size | 6 mm |
| Core Colours | Black/Blue/Brown/Green/Yellow |
| Core Diameter | 5.3 mm |
| Insulation Material | Silicone Rubber |
| Sheath Colour | Black |
| Overall Diameter | 15.7 mm |
| Number of Cores | 3 Core + Earth |
| Product Type | Flexible Cable High Temperature Double Insulated |
| Sheath Material | Silicone Rubber |
| Stranding | 0.3 mm |
| Temperature | -60 to 180 deg C |
| Voltage | 0.6-1 kV |
Description
Flexible Cable, Double Insulated, High Temperature, 3 Core & Earth, 6 mm, Tinned Annealed Copper, 0.6/1 kV, 0.3 mm Strands, 5.3 mm Core Diameter, 15.7 mm Overall Diameter, 78.5 mm Bend Radius, Conductor Resistance: DC - 3.39 Ohm/km, Silicone Rubber Insulation, Silicone Rubber Sheath, Brown Blue Black Green/Yellow Cores, Black Sheath, -60 to 180 deg C
