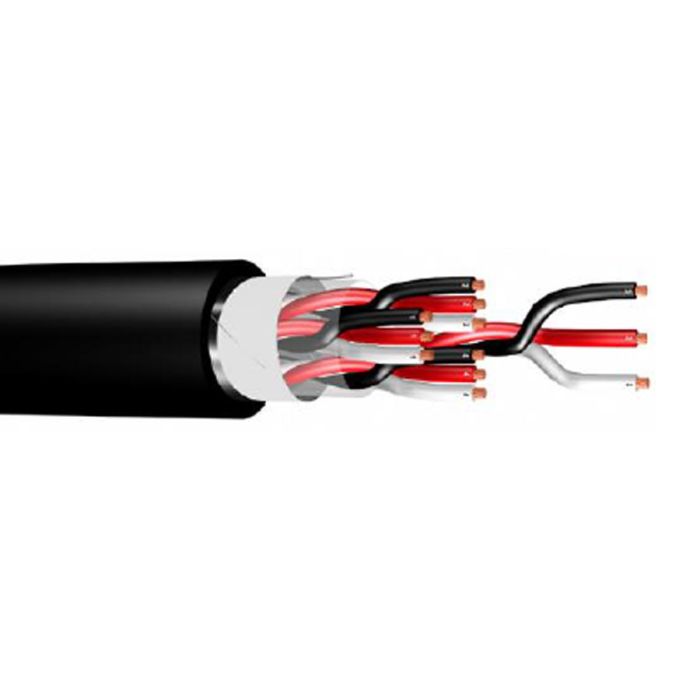

WWC 1.5mm 6 Triad Instrumentation Cable Unarmoured Overall Screened
WWC 1.5mm 6 Triad Instrumentation Cable Unarmoured Overall Screened
In stock
SKU
WWC5408
Instrumentation Cable, Unarmoured, 1.5 mm, Class 2 Annealed Copper, 110 Volt AC/150 Volt DC, 6 Triad, 7/0.5 mm Strands, Overall Screened Screen, 16 mm Overall Diameter, 96 mm Static Bend Radius, 13.6 Ohm/km Conductor Resistance, 140 MOhm/km Insulation Resistance, 0.4 mm Insulation Thickness, 100% Screen Coverage, Aluminium Foil/Polyester Tape w/Tinned Annealed Copper Drain Wire Screen, V-90 PVC Insulation, V-90 PVC Sheath, Black Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464
| Brand | WWC |
|---|---|
| Range Name | Machlink Type 110 |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 5408 |
| Conductor Size | 1.5 mm |
| Conductor Resistance | 13.6 Ohm/km |
| Conductor Type | Class 2 Annealed Copper |
| Bend Radius | Static 96 mm |
| Insulation Resistance | 140 MOhm/km |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.4 mm |
| Number of Pairs | 6 Triad |
| Overall Diameter | 16 mm |
| Product Type | Instrumentation Cable Unarmoured |
| Screen Coverage | 100% |
| Screen Material | Aluminium Foil/Polyester Tape w/Tinned Annealed Copper Drain Wire |
| Sheath Colour | Black |
| Screen Format | Overall Screened |
| Sheath Material | V-90 PVC |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464 |
| Stranding | 7/0.5 mm |
| Voltage | 110 Volt AC/150 Volt DC |
| Temperature | -25 to 75 deg C |
Description
Instrumentation Cable, Unarmoured, 1.5 mm, Class 2 Annealed Copper, 110 Volt AC/150 Volt DC, 6 Triad, 7/0.5 mm Strands, Overall Screened Screen, 16 mm Overall Diameter, 96 mm Static Bend Radius, 13.6 Ohm/km Conductor Resistance, 140 MOhm/km Insulation Resistance, 0.4 mm Insulation Thickness, 100% Screen Coverage, Aluminium Foil/Polyester Tape w/Tinned Annealed Copper Drain Wire Screen, V-90 PVC Insulation, V-90 PVC Sheath, Black Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464
