WWC 16mm Orange Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 1mtr
WWC 16mm Orange Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 1mtr
In stock
SKU
WWC1516UA

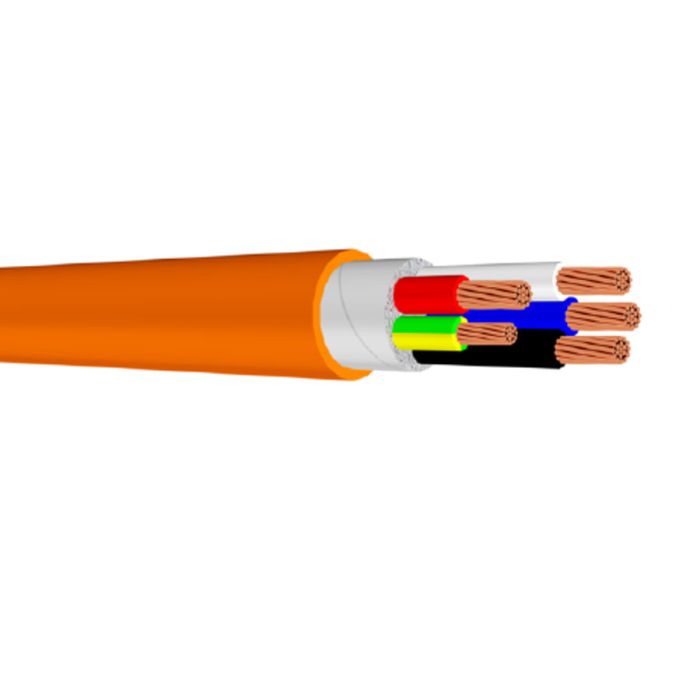

Circular Cable Unarmoured, 16mm, Class 2 Annealed Copper, 0.6-1 kV, 4 Core + Earth, 6.2mm Core Diameter, 20mm Overall Diameter, 6mm Earth Conductor, 1 mtr Length, Red/White/Blue/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1
| Brand | WWC |
|---|---|
| Range Name | Vipercon |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 1516UA |
| Conductor Size | 16 mm |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Conductor Type | Class 2 Annealed Copper |
| Core Diameter | 6.2 mm |
| Earth Conductor Size | 6 mm |
| Insulation Material | X-90 XLPE |
| Length | 1 mtr |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 20 mm |
| Product Type | Circular Cable Unarmoured |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
Description
Circular Cable Unarmoured, 16mm, Class 2 Annealed Copper, 0.6-1 kV, 4 Core + Earth, 6.2mm Core Diameter, 20mm Overall Diameter, 6mm Earth Conductor, 1 mtr Length, Red/White/Blue/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1
