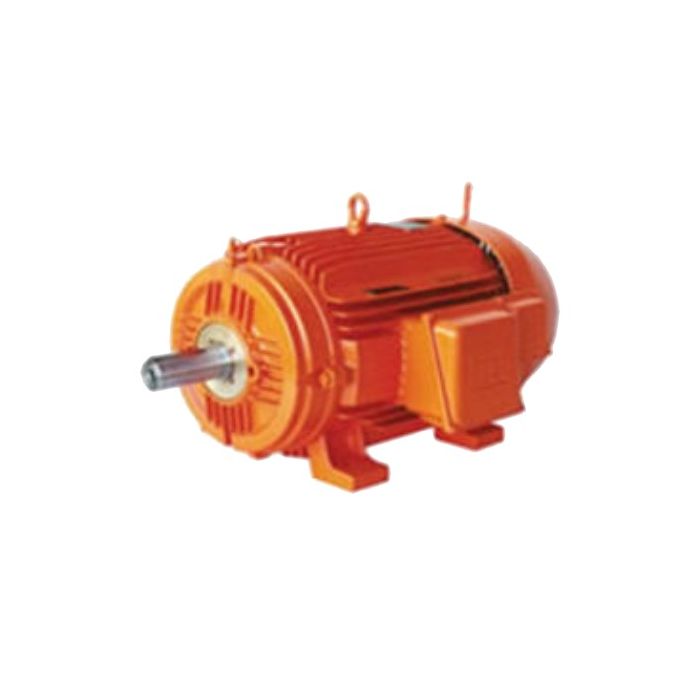

WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 37kW 3Ph 415V 200L Frame Flange B5R(E) Mount
WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 37kW 3Ph 415V 200L Frame Flange B5R(E) Mount
In stock
SKU
WEGMTE39PHEM
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 65.3 Amp, 50 Hz, 3 Phase, 2970 rpm, 37 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 200L, 55 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.86, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 119 N/m, Duty Cycle: S1, Flange B5R(E) Mounting, Insulation Class: H, Efficiency: 94.6%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 880 mm Length x 520 mm Width x 464 mm Height
| Features |
|
|---|---|
| Brand | WEG |
| Range Name | WMining Series |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | MTE39PHEM |
| Bearing Type | Ball |
| Current | 65.3 Amp |
| Duty Cycle | S1 |
| Efficiency | 94.6% |
| Enclosure Type | IC411-TEFC |
| Frame | Size 200L |
| Frame Material | Cast Iron |
| Frequency | 50 Hz |
| Height | 464 mm |
| IP Rating | IP66 |
| Length | 880 mm |
| Mounting Method | Flange |
| Insulation Class | Class H |
| Number Of Poles | 2 Pole |
| Output | 37 kW |
| Phase | 3 Phase |
| Rotation | Both (CW and CCW) |
| Product Type | Motors SCIM Mine Spec |
| Power Factor | 0.86 |
| Shaft Size | 55 mm |
| Shaft Material | Carbon Steel SAE 1040/45 |
| Speed | 2970 rpm |
| Service Factor | 1.15 |
| Starting Method | Direct On Line |
| Temperature | -20 to 40 deg C |
| Torque Rating | 119 N/m |
| Voltage | 415 Volt AC |
| Width | 520 mm |
Description
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 65.3 Amp, 50 Hz, 3 Phase, 2970 rpm, 37 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 200L, 55 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.86, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 119 N/m, Duty Cycle: S1, Flange B5R(E) Mounting, Insulation Class: H, Efficiency: 94.6%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 880 mm Length x 520 mm Width x 464 mm Height
