WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 0.75kW 3Ph 240/415V 80 Frame Foot/Flange B35R(E) Mount

WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 0.75kW 3Ph 240/415V 80 Frame Foot/Flange B35R(E) Mount

In stock
SKU
WEGLTE7PHEM
Add to Compare

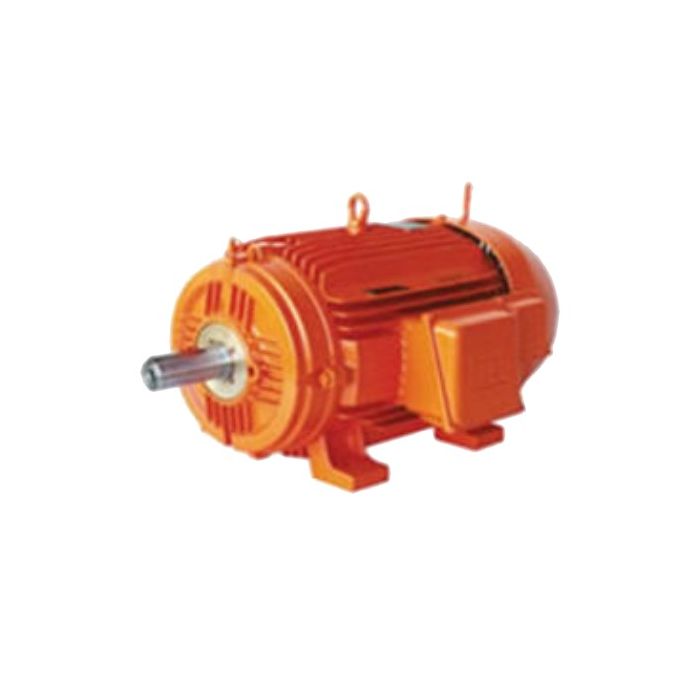

main product photo
Electric Motor Squirrel Cage Induction Mine Spec, 240/415 Volt AC, 2.75/1.59 Amp, 1 HP, 50 Hz, 3 Phase, 2860 rpm, 0.75 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 80, 19 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.81, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 0.255 kgfm, Duty Cycle: S1, Foot/Flange B35R(E) Mounting, Insulation Class: H, Efficiency: 81%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 277 mm Length x 218 mm Width x 163 mm Height
More Information
More Information
Features
  • The W22 Mining motors can operate with high efficiency in the severest applications
  • They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing
  • Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability
  • Totally enclosed fan cooled
Brand WEG
Range Name WMining Series
Standard Pack Size 1
UNSPSC Class 26101100
UOM EA
Vendor Product LTE7PHEM
Bearing Type Ball
Current 2.75/1.59 Amp
Duty Cycle S1
Efficiency 81%
Enclosure Type IC411-TEFC
Frame Size 80
Frame Material Cast Iron
Height 163 mm
Frequency 50 Hz
IP Rating IP66
Insulation Class Class H
Length 277 mm
Mounting Method Foot/Flange
Horsepower 1 kW
Number Of Poles 2 Pole
Output 0.75 kW
Power Factor 0.81
Phase 3 Phase
Product Type Motors SCIM Mine Spec
Rotation Both (CW and CCW)
Shaft Size 19 mm
Service Factor 1.15
Shaft Material Carbon Steel SAE 1040/45
Speed 2860 rpm
Starting Method Direct On Line
Temperature -20 to 40 deg C
Torque Rating 0.255 kgfm
Voltage 240-415 Volt AC
Width 218 mm

Description

Electric Motor Squirrel Cage Induction Mine Spec, 240/415 Volt AC, 2.75/1.59 Amp, 1 HP, 50 Hz, 3 Phase, 2860 rpm, 0.75 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 80, 19 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.81, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 0.255 kgfm, Duty Cycle: S1, Foot/Flange B35R(E) Mounting, Insulation Class: H, Efficiency: 81%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 277 mm Length x 218 mm Width x 163 mm Height

Infosheets
