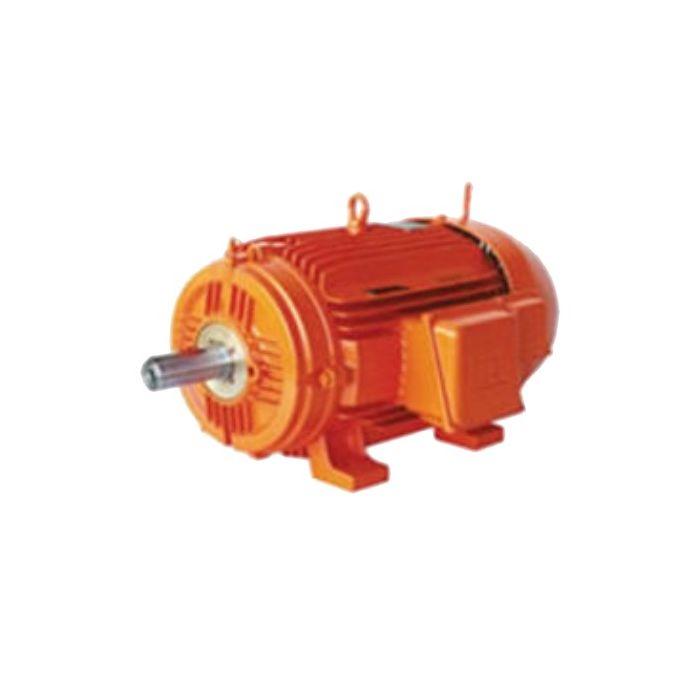

WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 45kW 3Ph 415V 225S/M Frame Foot/Flange B35R(E) Mount
WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 45kW 3Ph 415V 225S/M Frame Foot/Flange B35R(E) Mount
In stock
SKU
WEGLTE41PHEM
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 76.5 Amp, 60 HP, 50 Hz, 3 Phase, 2960 rpm, 45 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 225S/M, 60 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.87, Service Factor: 1.15, Roller Bearing, Direct On Line Starting, Torque: 14.8 kgfm, Duty Cycle: S1, Foot/Flange B35R(E) Mounting, Insulation Class: H, Efficiency: 94%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 886 mm Length x 608 mm Width x 534 mm Height
| Features |
|
|---|---|
| Brand | WEG |
| Range Name | WMining Series |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | LTE41PHEM |
| Bearing Type | Roller |
| Current | 76.5 Amp |
| Duty Cycle | S1 |
| Efficiency | 94% |
| Enclosure Type | IC411-TEFC |
| Frame | Size 225S/M |
| Frame Material | Cast Iron |
| Frequency | 50 Hz |
| Height | 534 mm |
| Horsepower | 60 kW |
| Insulation Class | Class H |
| IP Rating | IP66 |
| Number Of Poles | 2 Pole |
| Length | 886 mm |
| Output | 45 kW |
| Mounting Method | Foot/Flange |
| Phase | 3 Phase |
| Power Factor | 0.87 |
| Product Type | Motors SCIM Mine Spec |
| Rotation | Both (CW and CCW) |
| Shaft Size | 60 mm |
| Speed | 2960 rpm |
| Service Factor | 1.15 |
| Starting Method | Direct On Line |
| Shaft Material | Carbon Steel SAE 1040/45 |
| Temperature | -20 to 40 deg C |
| Torque Rating | 14.8 kgfm |
| Voltage | 415 Volt AC |
| Width | 608 mm |
Description
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 76.5 Amp, 60 HP, 50 Hz, 3 Phase, 2960 rpm, 45 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 225S/M, 60 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.87, Service Factor: 1.15, Roller Bearing, Direct On Line Starting, Torque: 14.8 kgfm, Duty Cycle: S1, Foot/Flange B35R(E) Mounting, Insulation Class: H, Efficiency: 94%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 886 mm Length x 608 mm Width x 534 mm Height
