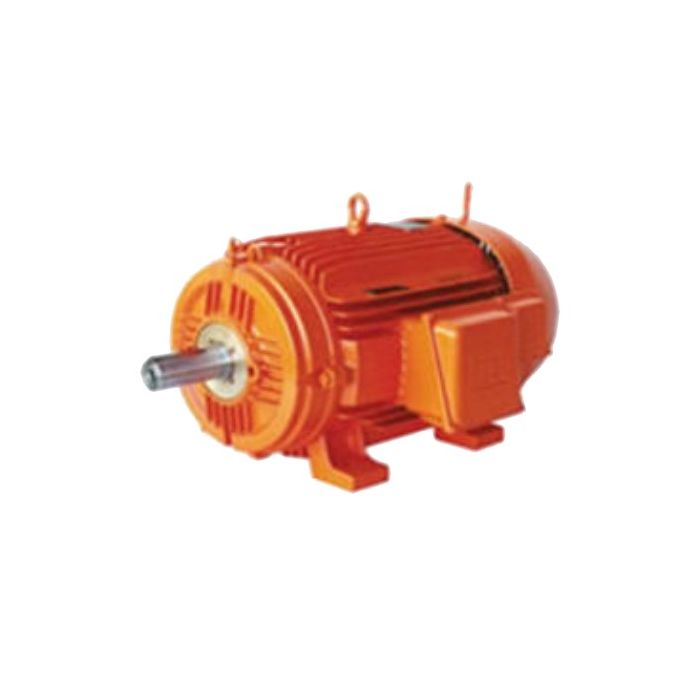

WEG Electric Motor Squirrel Cage Induction Mine Spec 4P 9.2kW 3Ph 415V 132M/L Frame Foot B3R(E) Mount
WEG Electric Motor Squirrel Cage Induction Mine Spec 4P 9.2kW 3Ph 415V 132M/L Frame Foot B3R(E) Mount
In stock
SKU
WEGKTE28PHEM
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 16.8 Amp, 12.5 HP, 50 Hz, 3 Phase, 1465 rpm, 9.2 kW Output, 4 Pole, IC411-TEFC Enclosure, IP66, Frame: 132M/L, 38 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.84, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 60 N/m, Duty Cycle: S1, Foot B3R(E) Mounting, Insulation Class: H, Efficiency: 91%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C
| Features |
|
|---|---|
| Brand | WEG |
| Range Name | WMining Series |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | KTE28PHEM |
| Bearing Type | Ball |
| Current | 16.8 Amp |
| Duty Cycle | S1 |
| Efficiency | 91% |
| Enclosure Type | IC411-TEFC |
| Frame | Size 132M/L |
| Frame Material | Cast Iron |
| Frequency | 50 Hz |
| Horsepower | 12.5 kW |
| IP Rating | IP66 |
| Mounting Method | Foot |
| Insulation Class | Class H |
| Number Of Poles | 4 Pole |
| Output | 9.2 kW |
| Phase | 3 Phase |
| Rotation | Both (CW and CCW) |
| Product Type | Motors SCIM Mine Spec |
| Power Factor | 0.84 |
| Shaft Size | 38 mm |
| Shaft Material | Carbon Steel SAE 1040/45 |
| Speed | 1465 rpm |
| Service Factor | 1.15 |
| Starting Method | Direct On Line |
| Temperature | -20 to 40 deg C |
| Torque Rating | 60 N/m |
| Voltage | 415 Volt AC |
Description
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 16.8 Amp, 12.5 HP, 50 Hz, 3 Phase, 1465 rpm, 9.2 kW Output, 4 Pole, IC411-TEFC Enclosure, IP66, Frame: 132M/L, 38 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.84, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 60 N/m, Duty Cycle: S1, Foot B3R(E) Mounting, Insulation Class: H, Efficiency: 91%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C
