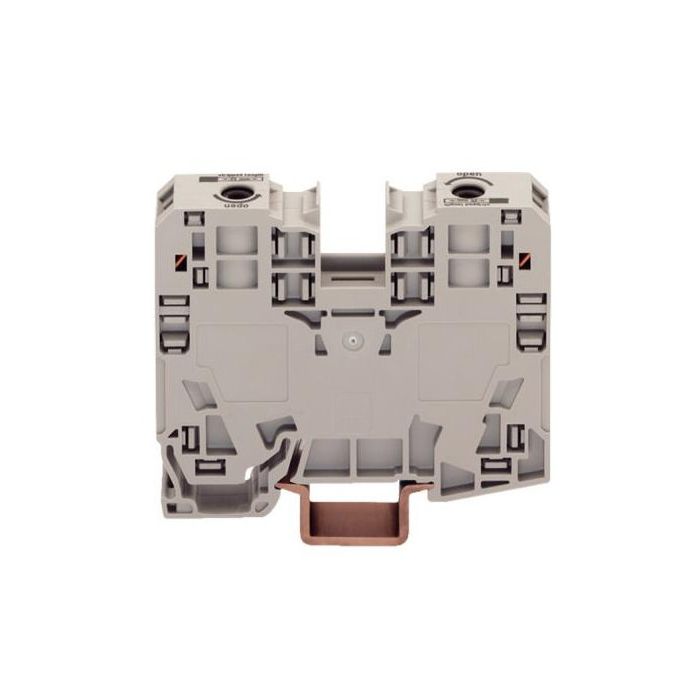

Wago Rail Terminal Block Feed-Through Spring Cage 2 Wire 1 Level 35mm Grey Polyamide 66
Wago Rail Terminal Block Feed-Through Spring Cage 2 Wire 1 Level 35mm Grey Polyamide 66
In stock
SKU
WAG285-135
Quick and easy connections are guaranteed with this through terminal block (item number 285-135). Strip lengths must be 25 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes POWER CAGE CLAMP. The POWER CAGE CLAMP is perfect for connecting large conductor cross-sections. This universal connector is both reliable and maintenance-free. What's more, you can use it to connect all types of conductors and the clamping point can be locked open, making it easier to use. You do not need to use a torque wrench or prepare the conductor. For example, crimping ferrules is not necessary. Depending on the type of conductor, this through terminal block is designed for conductor cross sections ranging from 6 sq-mm to 35 sq-mm . It features one level and two clamping points for connecting a single potential. The grey housing is made of polyamide (PA66) for insulation. These high-current terminal blocks are mounted using DIN-rails 35 x 15.
| Brand | Wago |
|---|---|
| Standard Pack Size | 15 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 285-135 |
| Conductor Material | Copper |
| Current Rating | 125 Amp |
| Colour | Grey |
| Conductor Size | 35mm |
| Depth | 16 mm |
| Actuation Type | Operating Tool |
| Fire Load | 1.246 MJ |
| Flammability | UL94 V0 |
| Height | 86 mm |
| Insulation Material | Polyamide 66 |
| Marking Position | Side |
| Marking | (III / 3) Overvoltage category III / Pollution degree 3 |
| Number of Conductors | 2 |
| Mounting Method | DIN Rail |
| Number of Connection Points | 2 |
| Number of Levels | 1 |
| Number of Potentials | 1 |
| Rated Surge Voltage | 8 kV |
| Temperature | -35 to 85 deg C |
| Terminal Type | Spring Cage |
| Voltage Rating | 1000 Volt |
| Width | 63 mm |
| Wire Entry Orientation | Side |
| Wiring Format | 2 Conductor Through |
| Wire Strip Length | 25 mm |
Description
Quick and easy connections are guaranteed with this through terminal block (item number 285-135). Strip lengths must be 25 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes POWER CAGE CLAMP. The POWER CAGE CLAMP is perfect for connecting large conductor cross-sections. This universal connector is both reliable and maintenance-free. What's more, you can use it to connect all types of conductors and the clamping point can be locked open, making it easier to use. You do not need to use a torque wrench or prepare the conductor. For example, crimping ferrules is not necessary. Depending on the type of conductor, this through terminal block is designed for conductor cross sections ranging from 6 sq-mm to 35 sq-mm . It features one level and two clamping points for connecting a single potential. The grey housing is made of polyamide (PA66) for insulation. These high-current terminal blocks are mounted using DIN-rails 35 x 15.
