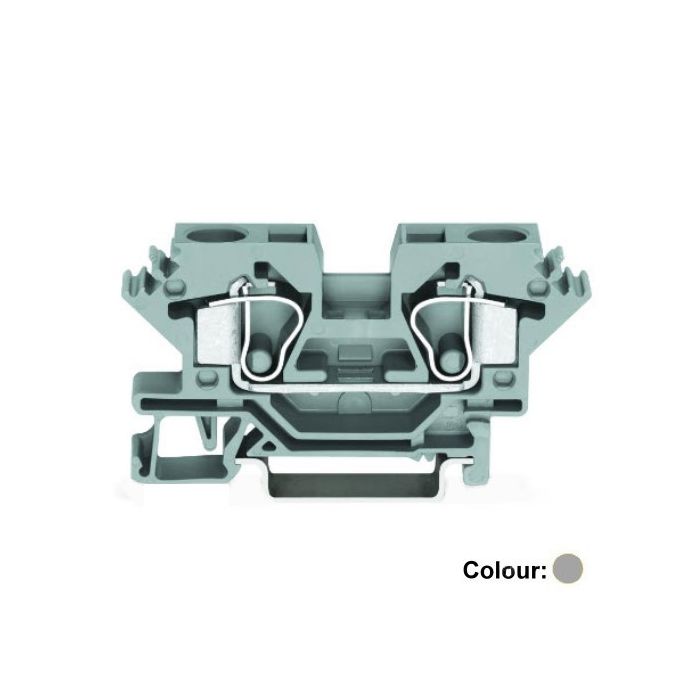

Wago Rail Terminal Block Cage Clamp 2 Wire 1 Level 10mm Grey Polyamide 66
Wago Rail Terminal Block Cage Clamp 2 Wire 1 Level 10mm Grey Polyamide 66
In stock
SKU
WAG284-601
Rail Terminal Block, 800 Volt, Rated Surge Voltage: 8 kV, 57 Amp, 10mm Conductor, 2 Conductors, Wire Strip Length: 12 to 13 mm, Wiring Format: 2 Conductor Through, Front Wire Entry, 2 Connection Points, 1 Potentials, 1 Level, Marking Position: Side, Marking: (III / 3) ? Overvoltage category III / Pollution degree 3, Fire load: 0.253 MJ, Actuation Type: Operating Tool, Cage Clamp Terminal, DIN-35 Rail Mount, Conductor Material: Copper, Insulation Material: Polyamide 66, Grey, Height: 69 mm, 33.5 mm Width, 10 mm Depth
| Brand | Wago |
|---|---|
| Standard Pack Size | 25 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 284-601 |
| Actuation Type | Operating Tool |
| Colour | Grey |
| Conductor Material | Copper |
| Conductor Size | 10mm |
| Current Rating | 57 Amp |
| Depth | 10 mm |
| Fire Load | 0.253 MJ |
| Insulation Material | Polyamide 66 |
| Height | 69 mm |
| Marking | (III / 3) Overvoltage category III / Pollution degree 3 |
| Marking Position | Side |
| Mounting Method | DIN Rail |
| Number of Conductors | 2 |
| Number of Connection Points | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Rated Surge Voltage | 8 kV |
| Product Type | Rail Terminal Blocks |
| Terminal Type | Cage Clamp |
| Voltage Rating | 800 Volt |
| Width | 33.5 mm |
| Wire Entry Orientation | Front |
| Wire Strip Length | 12-13 mm |
| Wiring Format | 2 Conductor Through |
Description
Rail Terminal Block, 800 Volt, Rated Surge Voltage: 8 kV, 57 Amp, 10mm Conductor, 2 Conductors, Wire Strip Length: 12 to 13 mm, Wiring Format: 2 Conductor Through, Front Wire Entry, 2 Connection Points, 1 Potentials, 1 Level, Marking Position: Side, Marking: (III / 3) ? Overvoltage category III / Pollution degree 3, Fire load: 0.253 MJ, Actuation Type: Operating Tool, Cage Clamp Terminal, DIN-35 Rail Mount, Conductor Material: Copper, Insulation Material: Polyamide 66, Grey, Height: 69 mm, 33.5 mm Width, 10 mm Depth
