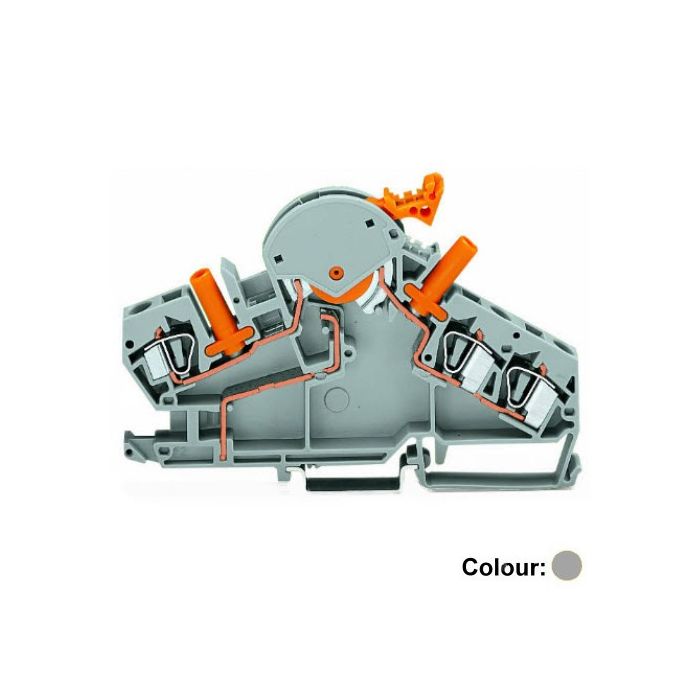

Wago Rail Terminal Block 3 Wire 1 Level 6mm Grey Polyamide 66
Wago Rail Terminal Block 3 Wire 1 Level 6mm Grey Polyamide 66
In stock
SKU
WAG282-870
Fault-free electrical installations are guaranteed with this current transformer terminal block (item number 282-870). Conductors should only be connected to this current transformer terminal block if their strip length is between 12 mm and 13 mm. Featuring conductor terminals along with CAGE CLAMP®, this product outperforms the competition. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. This current transformer terminal block is suitable for conductor cross sections ranging from 0.2 sq-mm to 6 sq-mm . It has one level. Two potentials can connect using the three clamping points The grey housing is made of polyamide (PA66) for insulation. These function terminal blocks are mounted using DIN-35 rails..
| Features |
|
|---|---|
| Brand | Wago |
| Standard Pack Size | 20 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 282-870 |
| Actuation Type | Operating Tool |
| Colour | Grey |
| Conductor Material | Copper |
| Conductor Size | 6.0mm |
| Current Rating | 30 Amp |
| Depth | 8 mm |
| Fire Load | 0.688 MJ |
| Flammability | UL94 V0 |
| Insulation Material | Polyamide 66 |
| Height | 122 mm |
| Marking | (III / 3) Overvoltage category III / Pollution degree 3 |
| Marking Position | Centre |
| Mounting Method | DIN Rail |
| Number of Conductors | 3 |
| Number of Connection Points | 3 |
| Number of Potentials | 2 |
| Number of Levels | 1 |
| Rated Surge Voltage | 6 kV |
| Product Type | Rail Terminal Blocks |
| Terminal Type | Cage Clamp |
| Temperature | -35 to 85 deg C |
| Voltage Rating | 500 Volt |
| Width | 75 mm |
| Wire Entry Orientation | Front |
| Wire Strip Length | 12-13 mm |
| Wiring Format | 3 Conductor Disconnect/Test |
Description
Fault-free electrical installations are guaranteed with this current transformer terminal block (item number 282-870). Conductors should only be connected to this current transformer terminal block if their strip length is between 12 mm and 13 mm. Featuring conductor terminals along with CAGE CLAMP®, this product outperforms the competition. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. This current transformer terminal block is suitable for conductor cross sections ranging from 0.2 sq-mm to 6 sq-mm . It has one level. Two potentials can connect using the three clamping points The grey housing is made of polyamide (PA66) for insulation. These function terminal blocks are mounted using DIN-35 rails..
