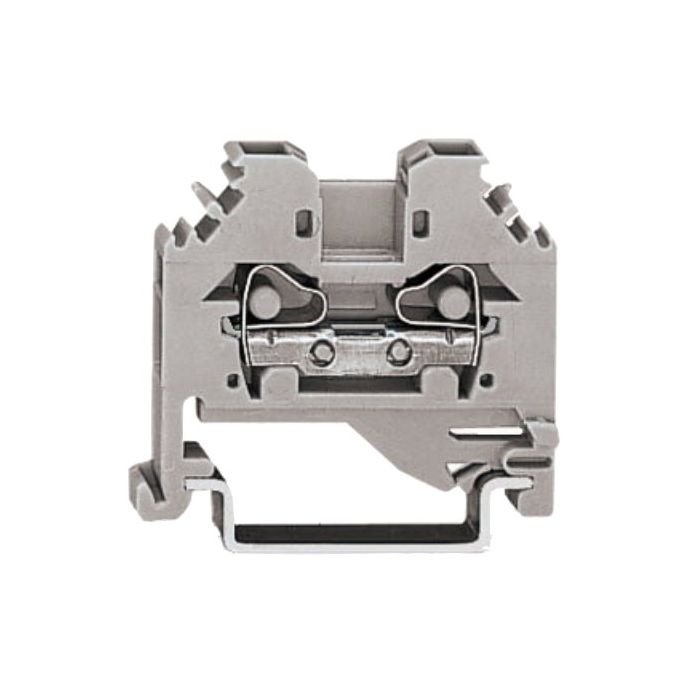

Wago Rail Terminal Block 2 Wire 1 Level 4mm Grey Polyamide 66
Wago Rail Terminal Block 2 Wire 1 Level 4mm Grey Polyamide 66
In stock
SKU
WAG281-101
Our through terminal block (item number 281-101) makes connecting wires quick and easy. Whether in industrial or building applications, our rail-mount through terminal blocks are the perfect solution to quickly and securely connect electrical conductors. Depending on the model, you can use them for either typical through-wiring or potential distribution. Our through rail-mount terminal block is rated for 800 V and is designed for use with a rated current of up to 32 A. Conductors can only be connected to this through terminal block if their strip length is between 9 mm and 10 mm. Featuring conductor terminals along with CAGE CLAMP®, this connector is highly versatile. Our celebrated universal connection known as CAGE CLAMP® leads the way when it comes to connection technology and electrical interconnections. Depending on the type of conductor, this through terminal block is suitable for conductor cross sections ranging from 0.08 sq-mm to 4 sq-mm . It has one level. The single potential can connect using the two clamping points The grey housing is made of polyamide (PA66) for insulation. This through rail-mount terminal block is operated with an operating tool. These through rail-mount terminal blocks are mounted using DIN-35 rails.. Conductors made of copper, aluminium can be connected via side-entry wiring.
| Brand | Wago |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 281-101 |
| Actuation Type | Operating Tool |
| Colour | Grey |
| Conductor Material | Copper/Aluminium |
| Conductor Size | 4.0mm |
| Current Rating | 32 Amp |
| Depth | 6 mm |
| Fire Load | 0.108 MJ |
| Flammability | UL94 V0 |
| Insulation Material | Polyamide 66 |
| Height | 42.5 mm |
| Marking | (III / 3) Overvoltage category III / Pollution degree 3 |
| Marking Position | Side |
| Mounting Method | DIN Rail |
| Number of Conductors | 2 |
| Number of Connection Points | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Rated Surge Voltage | 8 kV |
| Product Type | Rail Terminal Blocks |
| Terminal Type | Cage Clamp |
| Temperature | -35 to 85 deg C |
| Voltage Rating | 800 Volt |
| Width | 32.5 mm |
| Wire Entry Orientation | Side |
| Wire Strip Length | 9-10 mm |
| Wiring Format | 2 Conductor Through |
Description
Our through terminal block (item number 281-101) makes connecting wires quick and easy. Whether in industrial or building applications, our rail-mount through terminal blocks are the perfect solution to quickly and securely connect electrical conductors. Depending on the model, you can use them for either typical through-wiring or potential distribution. Our through rail-mount terminal block is rated for 800 V and is designed for use with a rated current of up to 32 A. Conductors can only be connected to this through terminal block if their strip length is between 9 mm and 10 mm. Featuring conductor terminals along with CAGE CLAMP®, this connector is highly versatile. Our celebrated universal connection known as CAGE CLAMP® leads the way when it comes to connection technology and electrical interconnections. Depending on the type of conductor, this through terminal block is suitable for conductor cross sections ranging from 0.08 sq-mm to 4 sq-mm . It has one level. The single potential can connect using the two clamping points The grey housing is made of polyamide (PA66) for insulation. This through rail-mount terminal block is operated with an operating tool. These through rail-mount terminal blocks are mounted using DIN-35 rails.. Conductors made of copper, aluminium can be connected via side-entry wiring.
