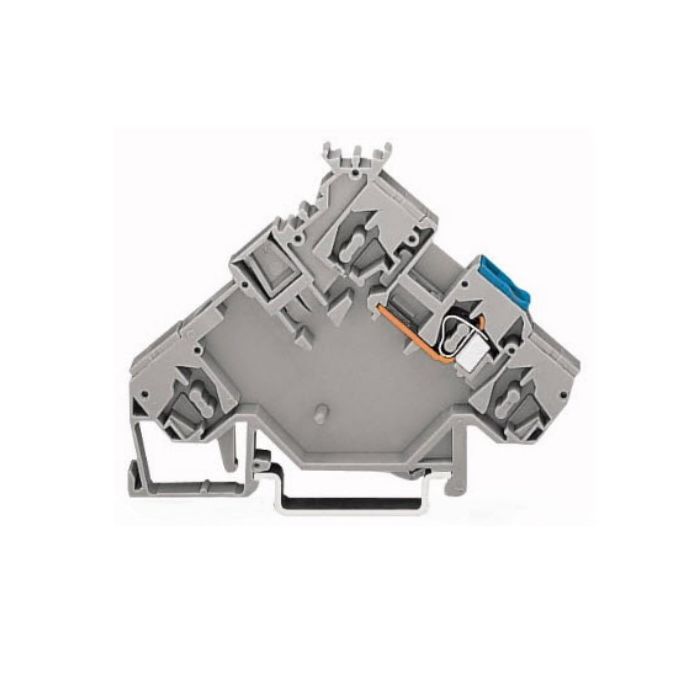

Wago Actuator Terminal Block 400V 20A 2 Wire 3 Level 2.5mm Grey Polyamide 66
Wago Actuator Terminal Block 400V 20A 2 Wire 3 Level 2.5mm Grey Polyamide 66
In stock
SKU
WAG280-592
Actuator Terminal Block, Angled, 400 Volt, Rated Surge Voltage: 6 kV, 20 Amp, 2.5mm Conductor, 2 Conductors, Wire Strip Length: 8 to 9 mm, Wiring Format: 2 Conductor, Front Wire Entry, 1 Connection Points, 1 Potentials, 3 Levels, Marking Position: Centre, Marking: (III / 3) ? Overvoltage category III / Pollution degree 3, Fire load: 0.184 MJ, Actuation Type: Operating Tool, DIN-35 Rail Mount, Conductor Material: Copper, Aluminium, Insulation Material: Polyamide 66, Grey, Height: 80 mm, 55.5 mm Width, 5 mm Depth
| Brand | Wago |
|---|---|
| Standard Pack Size | 10 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 280-592 |
| Actuation Type | Operating Tool |
| Colour | Grey |
| Conductor Material | Copper/Aluminium |
| Conductor Size | 2.5mm |
| Current Rating | 20 Amp |
| Depth | 5 mm |
| Fire Load | 0.184 MJ |
| Insulation Material | Polyamide 66 |
| Height | 80 mm |
| Marking | (III / 3) Overvoltage category III / Pollution degree 3 |
| Marking Position | Centre |
| Mounting Method | DIN Rail |
| Number of Conductors | 2 |
| Number of Connection Points | 1 |
| Number of Potentials | 1 |
| Number of Levels | 3 |
| Rated Surge Voltage | 6 kV |
| Product Type | Actuator Terminal Blocks |
| Voltage Rating | 400 Volt |
| Width | 55.5 mm |
| Wire Entry Orientation | Front |
| Wire Strip Length | 8-9 mm |
| Wiring Format | 2 Conductor |
Description
Actuator Terminal Block, Angled, 400 Volt, Rated Surge Voltage: 6 kV, 20 Amp, 2.5mm Conductor, 2 Conductors, Wire Strip Length: 8 to 9 mm, Wiring Format: 2 Conductor, Front Wire Entry, 1 Connection Points, 1 Potentials, 3 Levels, Marking Position: Centre, Marking: (III / 3) ? Overvoltage category III / Pollution degree 3, Fire load: 0.184 MJ, Actuation Type: Operating Tool, DIN-35 Rail Mount, Conductor Material: Copper, Aluminium, Insulation Material: Polyamide 66, Grey, Height: 80 mm, 55.5 mm Width, 5 mm Depth
