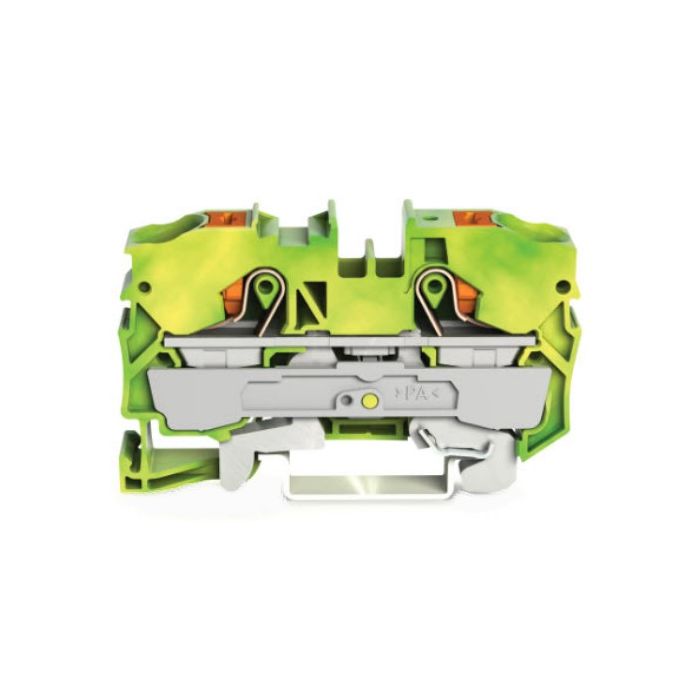

Wago Rail Terminal Block Push-In Cage Clamp 2 Wire 1 Level 10mm Green/Yellow Polyamide 66
Wago Rail Terminal Block Push-In Cage Clamp 2 Wire 1 Level 10mm Green/Yellow Polyamide 66
In stock
SKU
WAG2210-1207
This ground terminal block (item number 2210-1207) streamlines wire connections, making them both quick and easy. Ground terminal blocks connect directly to the mounting rail via an integrated contact foot. This creates an electrical and mechanical link between the electrical conductors and the mounting adapter. Strip lengths must be between 17 mm and 19 mm when connecting conductors to this ground terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. This ground terminal block is suitable for conductor cross sections ranging from 0.5 sq-mm to 16 sq-mm . It has one level. The single potential can connect using the two clamping points The green-yellow housing is made of polyamide (PA66) for insulation. This through rail-mount terminal block is operated with a push-button. Our TOPJOB® S rail-mount terminal blocks are perfect for a wide range of industrial applications and modern building installations thanks to the secure electrical connections they provide. You can work anywhere in the world and on any application with just a single rail-mount terminal block system. These through rail-mount terminal blocks are mounted using DIN-35 rails.. The front-entry wiring means you can connect copper conductors. The two jumper slots enable potential distribution to other clamping points. This product is designed for specific Ex applications (please refer to the product datasheet).
| Brand | Wago |
|---|---|
| Range Name | TopJobs Series 2210 |
| Standard Pack Size | 25 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 2210-1207 |
| Actuation Type | Push-In/Push Button |
| Colour | Green/Yellow |
| Conductor Material | Copper |
| Conductor Size | 10mm |
| Depth | 10 mm |
| Fire Load | 0.422 MJ |
| Flammability | UL94 V0 |
| Insulation Material | Polyamide 66 |
| Height | 67.6 mm |
| Marking | (III / 3) Overvoltage category III / Pollution degree 3 |
| Marking Position | Centre/Side |
| Mounting Method | DIN Rail |
| Number of Conductors | 2 |
| Number of Connection Points | 2 |
| Number of Jumper Slots | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Product Type | Rail Terminal Blocks |
| Terminal Type | Push-In Cage Clamp |
| Temperature | -60 to 105 deg C |
| Width | 36.9 mm |
| Wire Entry Orientation | Front |
| Wire Strip Length | 17-19 mm |
| Wiring Format | 2 Conductor Ground |
Description
This ground terminal block (item number 2210-1207) streamlines wire connections, making them both quick and easy. Ground terminal blocks connect directly to the mounting rail via an integrated contact foot. This creates an electrical and mechanical link between the electrical conductors and the mounting adapter. Strip lengths must be between 17 mm and 19 mm when connecting conductors to this ground terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. This ground terminal block is suitable for conductor cross sections ranging from 0.5 sq-mm to 16 sq-mm . It has one level. The single potential can connect using the two clamping points The green-yellow housing is made of polyamide (PA66) for insulation. This through rail-mount terminal block is operated with a push-button. Our TOPJOB® S rail-mount terminal blocks are perfect for a wide range of industrial applications and modern building installations thanks to the secure electrical connections they provide. You can work anywhere in the world and on any application with just a single rail-mount terminal block system. These through rail-mount terminal blocks are mounted using DIN-35 rails.. The front-entry wiring means you can connect copper conductors. The two jumper slots enable potential distribution to other clamping points. This product is designed for specific Ex applications (please refer to the product datasheet).
