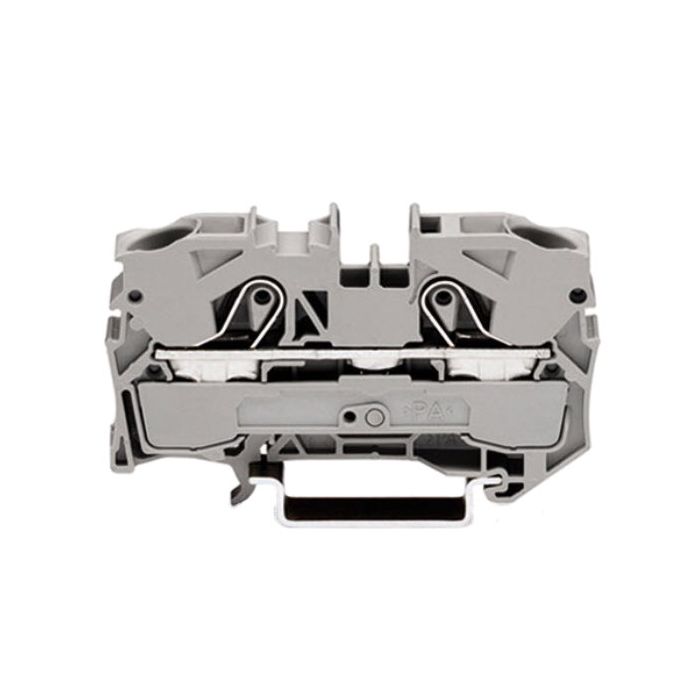

Wago Rail Terminal Block 2 Wire 1 Level 10mm Grey Polyamide 66
Wago Rail Terminal Block 2 Wire 1 Level 10mm Grey Polyamide 66
In stock
SKU
WAG2010-1201
Our through terminal block (item number 2010-1201) simplifies electrical installations. Whether in industrial or building applications, our rail-mount through terminal blocks are the perfect solution to quickly and securely connect electrical conductors. Depending on the model, you can use them for either typical through-wiring or potential distribution. Rated current and voltage are key factors to consider when selecting a through rail-mount terminal block, as they indicate how the product can be used. This product has a rated voltage of 800 V and a rated current of 57 A. Strip lengths must be between 17 mm and 19 mm when connecting conductors to this through terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP®, this connector is highly versatile. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. The item's dimensions are 10 x 67.8 x 43.5 mm (width x height x depth). Depending on the type of conductor, this through terminal block is suitable for conductor cross sections ranging from 0.5 sq-mm to 16 sq-mm . It comes with one level and two clamping points that you can use to connect a single potential. The grey housing is made of polyamide (PA66) for insulation. This through rail-mount terminal block is operated with an operating tool. Our TOPJOB® S rail-mount terminal blocks guarantee secure electrical connections across many industrial applications and modern building installations. They simplify wiring, as you can quickly plug in solid, stranded, and fine-stranded conductors with ferrules. These through rail-mount terminal blocks are mounted using DIN-35 rails.. Conductors made of copper can be connected via front-entry wiring. The two jumper slots enable potential distribution to other clamping points. This product is designed for specific Ex applications (please refer to the product datasheet).
| Brand | Wago |
|---|---|
| Range Name | TopJobs Series 2010 |
| Standard Pack Size | 25 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 2010-1201 |
| Actuation Type | Push-In/Open Tool Slot |
| Colour | Grey |
| Conductor Material | Copper |
| Conductor Size | 10mm |
| Current Rating | 57 Amp |
| Depth | 10 mm |
| Fire Load | 0.289 MJ |
| Flammability | UL94 V0 |
| Insulation Material | Polyamide 66 |
| Height | 67.8 mm |
| Marking | (III / 3) Overvoltage category III / Pollution degree 3 |
| Marking Position | Centre/Side |
| Mounting Method | DIN Rail |
| Number of Conductors | 2 |
| Number of Connection Points | 2 |
| Number of Jumper Slots | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Rated Surge Voltage | 8 kV |
| Product Type | Rail Terminal Blocks |
| Terminal Type | Push-In Cage Clamp |
| Temperature | -35 to 85 deg C |
| Voltage Rating | 800 Volt |
| Width | 36.9 mm |
| Wire Entry Orientation | Front |
| Wire Strip Length | 17-19 mm |
| Wiring Format | 2 Conductor Through |
Description
Our through terminal block (item number 2010-1201) simplifies electrical installations. Whether in industrial or building applications, our rail-mount through terminal blocks are the perfect solution to quickly and securely connect electrical conductors. Depending on the model, you can use them for either typical through-wiring or potential distribution. Rated current and voltage are key factors to consider when selecting a through rail-mount terminal block, as they indicate how the product can be used. This product has a rated voltage of 800 V and a rated current of 57 A. Strip lengths must be between 17 mm and 19 mm when connecting conductors to this through terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP®, this connector is highly versatile. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. The item's dimensions are 10 x 67.8 x 43.5 mm (width x height x depth). Depending on the type of conductor, this through terminal block is suitable for conductor cross sections ranging from 0.5 sq-mm to 16 sq-mm . It comes with one level and two clamping points that you can use to connect a single potential. The grey housing is made of polyamide (PA66) for insulation. This through rail-mount terminal block is operated with an operating tool. Our TOPJOB® S rail-mount terminal blocks guarantee secure electrical connections across many industrial applications and modern building installations. They simplify wiring, as you can quickly plug in solid, stranded, and fine-stranded conductors with ferrules. These through rail-mount terminal blocks are mounted using DIN-35 rails.. Conductors made of copper can be connected via front-entry wiring. The two jumper slots enable potential distribution to other clamping points. This product is designed for specific Ex applications (please refer to the product datasheet).
