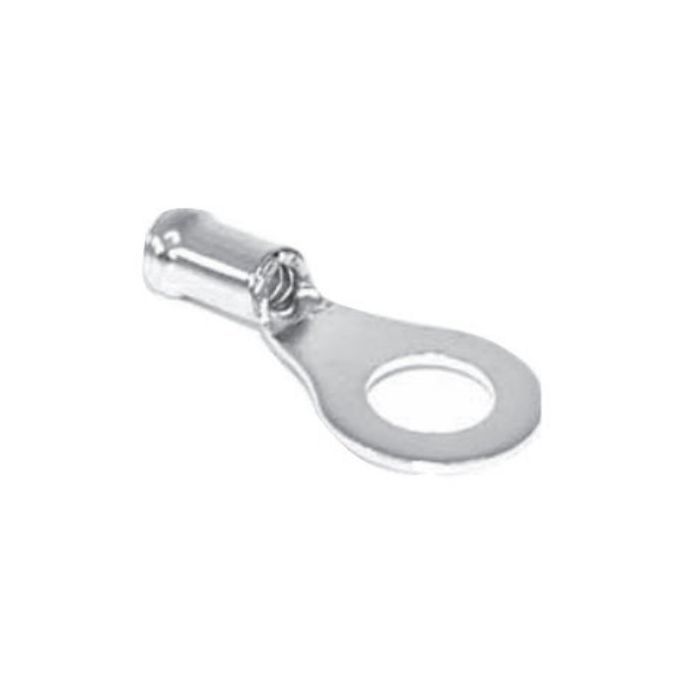

Utilux Ring Terminal Un-Insulated 2.5-6mm M5 Stud 24.4mm OAL
Utilux Ring Terminal Un-Insulated 2.5-6mm M5 Stud 24.4mm OAL
In stock
SKU
UTIH3233/100
Ring Terminal Un-Insulated, 2.5-6 mm, M5 Stud, 12-10 AWG Terminal Size, 12.7 mm Barrel Length, 16/18/76B/124, 6.1 mm Insulation Diameter, Nickel Plated, 280 deg C, 24.4 mm Overall Length, 9.5 mm Lug Width, 0.9 mm Lug Thickness, 9.5 mm Lug Inside Diameter, 100 Pack
| Brand | Utilux |
|---|---|
| Range Name | High Temperature |
| Standard Pack Size | 100 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | UTIH3233/100 |
| Barrel Length | 12.7 mm |
| Conductor Size | 2.5-6mm |
| Crimping Die | 16/18/76B/124 |
| Finish | Nickel Plated |
| Insulation Diameter | 6.1 mm |
| Lug Inside Diameter | 9.5 mm |
| Lug Thickness | 0.9 mm |
| Lug Width | 9.5 mm |
| Overall Length | 24.4 mm |
| Pack Size | 100 Pack |
| Product Type | Forked & Ring Terminals |
| Stud Size | M5 |
| Temperature | 280 deg C |
| Terminal Size | 12-10 AWG |
Description
Ring Terminal Un-Insulated, 2.5-6 mm, M5 Stud, 12-10 AWG Terminal Size, 12.7 mm Barrel Length, 16/18/76B/124, 6.1 mm Insulation Diameter, Nickel Plated, 280 deg C, 24.4 mm Overall Length, 9.5 mm Lug Width, 0.9 mm Lug Thickness, 9.5 mm Lug Inside Diameter, 100 Pack
