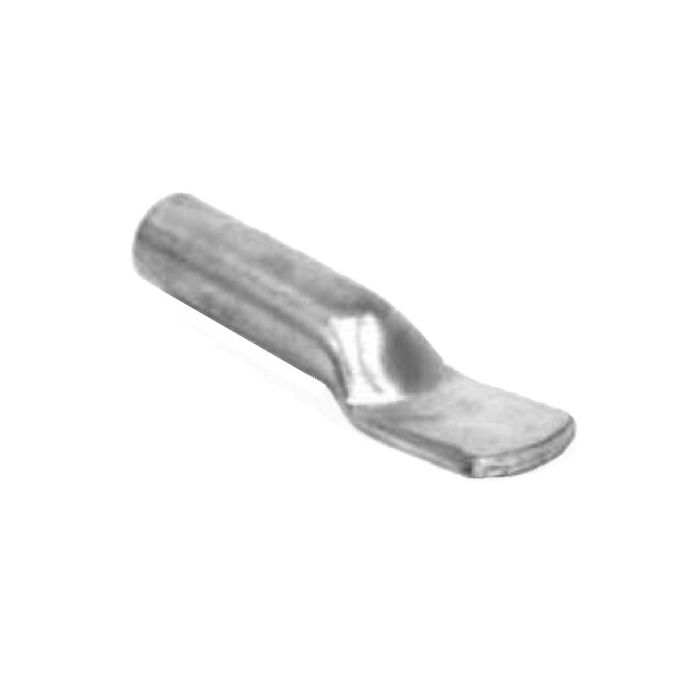

Utilux Crimp Lug Long Barrel Copper 400mm M16 Stud
Utilux Crimp Lug Long Barrel Copper 400mm M16 Stud
In stock
SKU
UTIH16042/1
Crimp Lug Long Barrel Copper, 400 mm Conductor, M16 Stud, Long Barrel, 105mm Barrel, Solder Sealed Palm,1 Hole, Number of Strands: 61/2.85, 49.6 mm Lug Width, 54 mm Lug Length, Crimping Die: 40/66-281CU, Copper Body,Copper Conductor, Tin Electroplated Finish
| Features |
|
|---|---|
| Brand | Utilux |
| Range Name | Long Barrel Lugs |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | UTIH16042/1 |
| Barrel Length | 105 mm |
| Barrel Type | Long |
| Body Material | Copper |
| Conductive Material | Copper |
| Conductor Size | 400 mm |
| Crimping Die | 40/66-281CU |
| Finish | Tin Electroplated |
| Lug Length | 54 mm |
| Lug Width | 49.6 mm |
| Number of Holes | 1 Hole |
| Number of Strands | 61/2.85 |
| Palm Type | Solder Sealed |
| Product Type | Lugs Long Barrel |
| Stud Size | M16 Stud |
Description
Crimp Lug Long Barrel Copper, 400 mm Conductor, M16 Stud, Long Barrel, 105mm Barrel, Solder Sealed Palm,1 Hole, Number of Strands: 61/2.85, 49.6 mm Lug Width, 54 mm Lug Length, Crimping Die: 40/66-281CU, Copper Body,Copper Conductor, Tin Electroplated Finish
