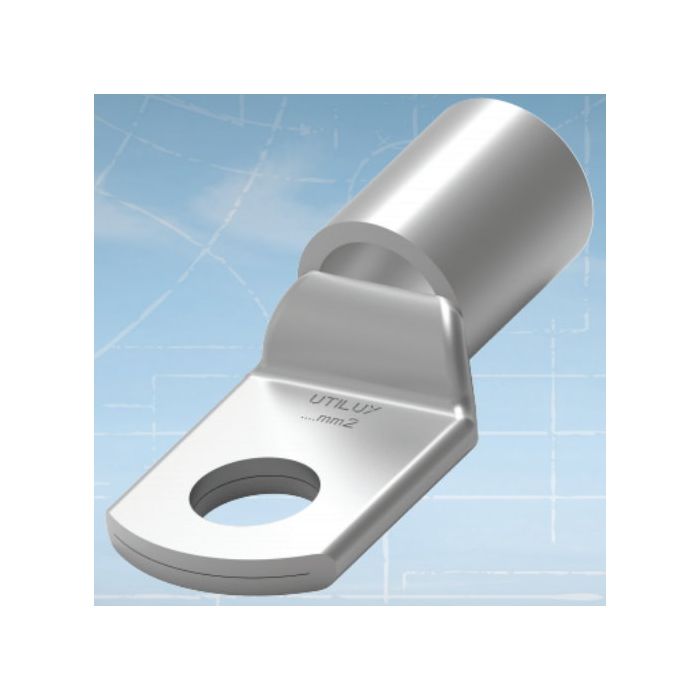

Utilux Crimp Lug Standard Copper 20mm M10 Stud 42.1mm OAL
Utilux Crimp Lug Standard Copper 20mm M10 Stud 42.1mm OAL
In stock
SKU
UTIH1411/100
Crimp Lug, Standard, Copper, 20 mm Conductor, M10 Stud, Standard Barrel, Barrel Length: 20.3 mm, 42.1 mm Overall Length, 1 Hole, Copper Body, Copper Conductor, Tin Electroplated Finish, Number of Strands: 19/0.44, Inside Diameter: 6.3 mm, 19 mm Lug Length, 14.3 mm Lug Width, 2 mm Lug Thickness, Crimping Die: 38-70CU
| Features |
|
|---|---|
| Brand | Utilux |
| Standard Pack Size | 100 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | UTIH1411/100 |
| Barrel Length | 20.3 mm |
| Barrel Type | Standard |
| Body Material | Copper |
| Conductive Material | Copper |
| Conductor Size | 20 mm |
| Crimping Die | 38-70CU |
| Finish | Tin Electroplated |
| Inside Diameter | 6.3 mm |
| Lug Length | 19 mm |
| Lug Thickness | 2 mm |
| Lug Width | 14.3 mm |
| Number of Holes | 1 |
| Number of Strands | 19/0.44 |
| Overall Length | 42.1 mm |
| Product Type | Lugs Standard Copper |
| Stud Size | M10 Stud |
Description
Crimp Lug, Standard, Copper, 20 mm Conductor, M10 Stud, Standard Barrel, Barrel Length: 20.3 mm, 42.1 mm Overall Length, 1 Hole, Copper Body, Copper Conductor, Tin Electroplated Finish, Number of Strands: 19/0.44, Inside Diameter: 6.3 mm, 19 mm Lug Length, 14.3 mm Lug Width, 2 mm Lug Thickness, Crimping Die: 38-70CU
