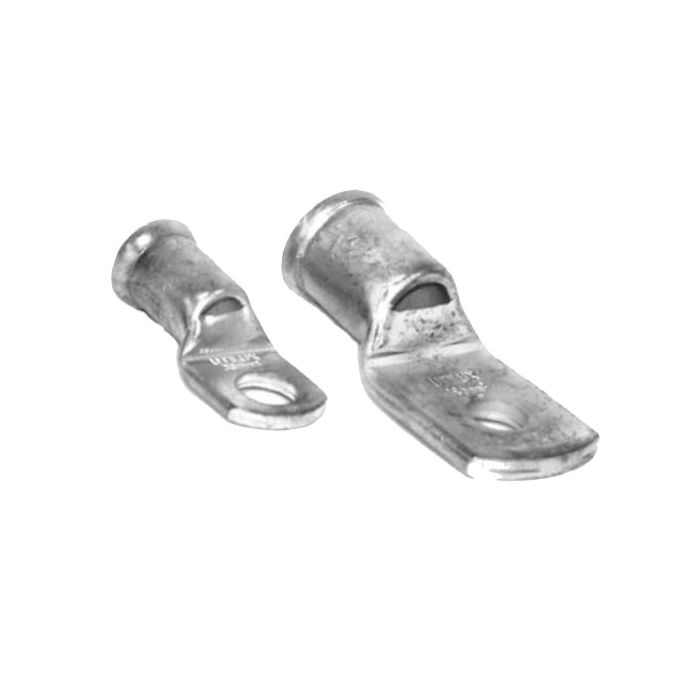

Utilux Crimp Lug Bell Mouth with Inspection Window Copper 185mm M12 Stud 79mm OAL
Utilux Crimp Lug Bell Mouth with Inspection Window Copper 185mm M12 Stud 79mm OAL
In stock
SKU
UTICG185FLM12/20
Crimp Lug, Bell Mouth, with Inspection Window, Copper, 185 mm Conductor, M12 Stud, Flared Barrel, 31mm Barrel, 79mm Overall Length, 1 Hole, Copper Body, Copper Conductor, Tin Electroplated Finish, Number of Strands: 518/0.67, 34mm Lug Width, 32mm Lug Length, Crimping Die: 38-200CU, with Inspection Window
| Features |
|
|---|---|
| Brand | Utilux |
| Range Name | Bell Mouth Lugs |
| Standard Pack Size | 20 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | UTICG185FLM12/20 |
| Barrel Length | 31 mm |
| Barrel Type | Flared |
| Body Material | Copper |
| Conductive Material | Copper |
| Conductor Size | 185 mm |
| Crimping Die | 38-200CU |
| Finish | Tin Electroplated |
| Lug Length | 32 mm |
| Lug Width | 34 mm |
| Number of Holes | 1 |
| Number of Strands | 518/0.67 |
| Overall Length | 79 mm |
| Please Note | with Inspection Window |
| Product Type | Lugs Bell Mouth |
| Stud Size | M12 Stud |
Description
Crimp Lug, Bell Mouth, with Inspection Window, Copper, 185 mm Conductor, M12 Stud, Flared Barrel, 31mm Barrel, 79mm Overall Length, 1 Hole, Copper Body, Copper Conductor, Tin Electroplated Finish, Number of Strands: 518/0.67, 34mm Lug Width, 32mm Lug Length, Crimping Die: 38-200CU, with Inspection Window
