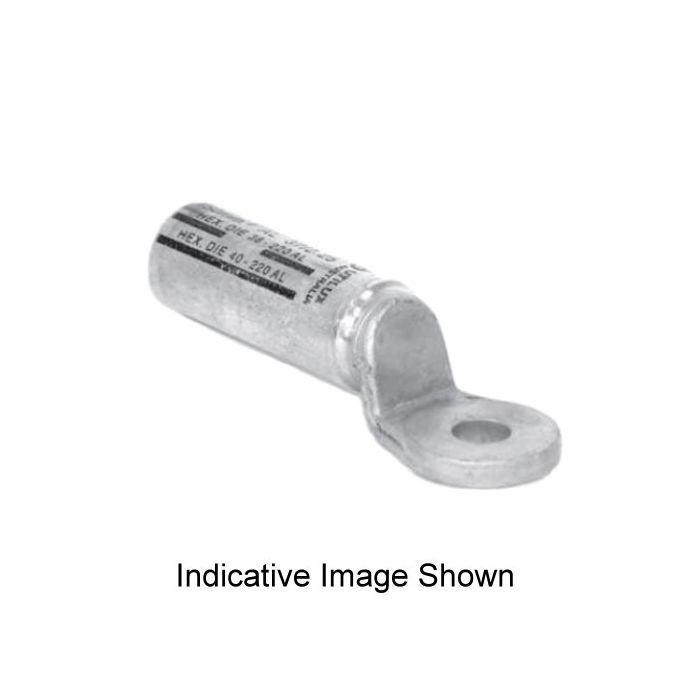

Utilux Crimp Lug Standard Bi-Metal 70mm M12 Stud 75mm OAL
Utilux Crimp Lug Standard Bi-Metal 70mm M12 Stud 75mm OAL
In stock
SKU
UTIBG70M12/1
Crimp Lug, Standard, Bi-Metal, 70 mm Conductor, M12 Stud, Standard Barrel, Barrel Length: 32 mm, 75 mm Overall Length, 1 Hole, Bi-Metal Body, Conductive Material: Copper Barrel/Aluminium Palm, Unplated Finish, Number of Strands: 19/2.14, Inside Diameter: 11 mm, 16 mm Outside Diameter, 22 mm Lug Width, 4.5 mm Lug Thickness, Crimping Die: 38-132AL
| Features |
|
|---|---|
| Brand | Utilux |
| Range Name | Standard Lugs Bi-Metal |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | UTIBG70M12/1 |
| Barrel Length | 32 mm |
| Barrel Type | Standard |
| Body Material | Bi-Metal |
| Conductive Material | Copper Barrel/Aluminium Palm |
| Conductor Size | 70 mm |
| Crimping Die | 38-132AL |
| Finish | Unplated |
| Inside Diameter | 11 mm |
| Lug Thickness | 4.5 mm |
| Lug Width | 22 mm |
| Number of Holes | 1 |
| Number of Strands | 19/2.14 |
| Outside Diameter | 16 mm |
| Overall Length | 75 mm |
| Product Type | Lugs Standard Bi-Metal |
| Stud Size | M12 Stud |
Description
Crimp Lug, Standard, Bi-Metal, 70 mm Conductor, M12 Stud, Standard Barrel, Barrel Length: 32 mm, 75 mm Overall Length, 1 Hole, Bi-Metal Body, Conductive Material: Copper Barrel/Aluminium Palm, Unplated Finish, Number of Strands: 19/2.14, Inside Diameter: 11 mm, 16 mm Outside Diameter, 22 mm Lug Width, 4.5 mm Lug Thickness, Crimping Die: 38-132AL
