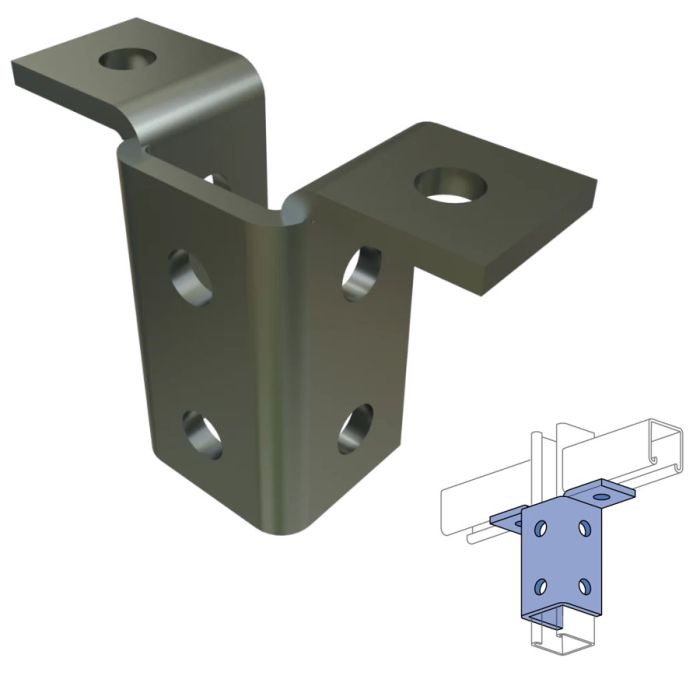

Unistrut Strut Post Base Plate Wing Shape 8 Hole 90 Degree L137mm W40mm H96mm Steel Hot-Dip Galvanised
Unistrut Strut Post Base Plate Wing Shape 8 Hole 90 Degree L137mm W40mm H96mm Steel Hot-Dip Galvanised
In stock
SKU
UNSP2346H
Strut Post Base Plate Wing Shape, 90 deg Angle, 8 Hole, 14 mm Hole Diameter, 21 mm From End 48 mm On Center Hole Spacing, For Use With 41 mm Width Channel/Strut, Steel, Hot Dip Galvanised, 137 mm Length, 40 mm Width, 96 mm Height, 2.5 Safety Factor
| Features |
|
|---|---|
| Brand | Unistrut |
| Standard Pack Size | 1 |
| UNSPSC Class | 30101800 |
| UOM | EA |
| Vendor Product | 4001087 |
| Angle | 90 Deg |
| Finish | Hot Dip Galvanised |
| For Use With | 41 mm Width Channel/Strut |
| Hole Spacing | 21 mm From End - 48 mm On Center |
| Hole Diameter | 14 mm |
| Height | 96 mm |
| Length | 137 mm |
| Material | Steel |
| Please Note | 2.5 Safety Factor |
| Number of Holes | 8 Hole |
| Product Type | Strut Post Bases |
| Width | 40 mm |
Description
Strut Post Base Plate Wing Shape, 90 deg Angle, 8 Hole, 14 mm Hole Diameter, 21 mm From End 48 mm On Center Hole Spacing, For Use With 41 mm Width Channel/Strut, Steel, Hot Dip Galvanised, 137 mm Length, 40 mm Width, 96 mm Height, 2.5 Safety Factor
