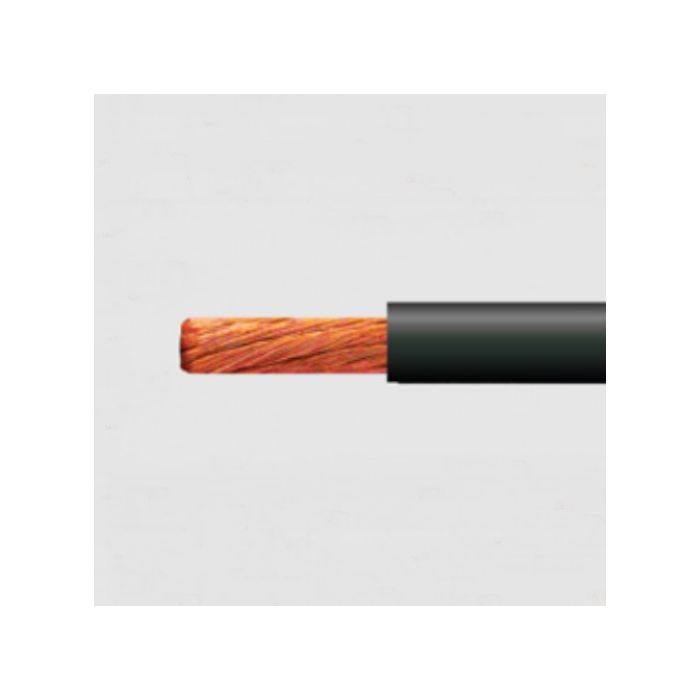

Tycab Flexible Power Cable 1 Core 16mm 0.6/1kV Plain Copper V90HT PVC Black
Tycab Flexible Power Cable 1 Core 16mm 0.6/1kV Plain Copper V90HT PVC Black
In stock
SKU
TYCZBD151102-BK-100
Flexible Cable, 16 mm, Class 6 Oxygen Free Copper, 0.6-1 kV, 69 Amp, 1 Core, 511/0.2 mm Strands, 7.3 mm Overall Diameter, Static 29.2 mm Bend Radius, 1 mm Insulation Thickness, 1.21 Ohm/km Conductor Resistance, V-90HT PVC RoHS Compliant Insulation, Black Insulation, Unsheathed Sheath, 75 deg C, AS/NZS 3008.1.1:2009 AS/NZS 3008
| Brand | Tycab |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | ZBD151102-BK-100 |
| Bend Radius | Static 29.2 mm |
| Conductor Resistance | 1.21 Ohm/km |
| Conductor Size | 16 mm |
| Conductor Type | Class 6 Oxygen Free Copper |
| Current | 69 Amp |
| Insulation Colour | Black |
| Insulation Material | V-90HT PVC RoHS Compliant |
| Insulation Thickness | 1 mm |
| Overall Diameter | 7.3 mm |
| Number of Cores | 1 Core |
| Product Type | Flexible Cable |
| Sheath Material | Unsheathed |
| Standards | AS/NZS 3008.1.1:2009 AS/NZS 3008 |
| Stranding | 511/0.2 mm |
| Temperature | 75 deg C |
| Voltage | 0.6-1 kV |
Description
Flexible Cable, 16 mm, Class 6 Oxygen Free Copper, 0.6-1 kV, 69 Amp, 1 Core, 511/0.2 mm Strands, 7.3 mm Overall Diameter, Static 29.2 mm Bend Radius, 1 mm Insulation Thickness, 1.21 Ohm/km Conductor Resistance, V-90HT PVC RoHS Compliant Insulation, Black Insulation, Unsheathed Sheath, 75 deg C, AS/NZS 3008.1.1:2009 AS/NZS 3008
