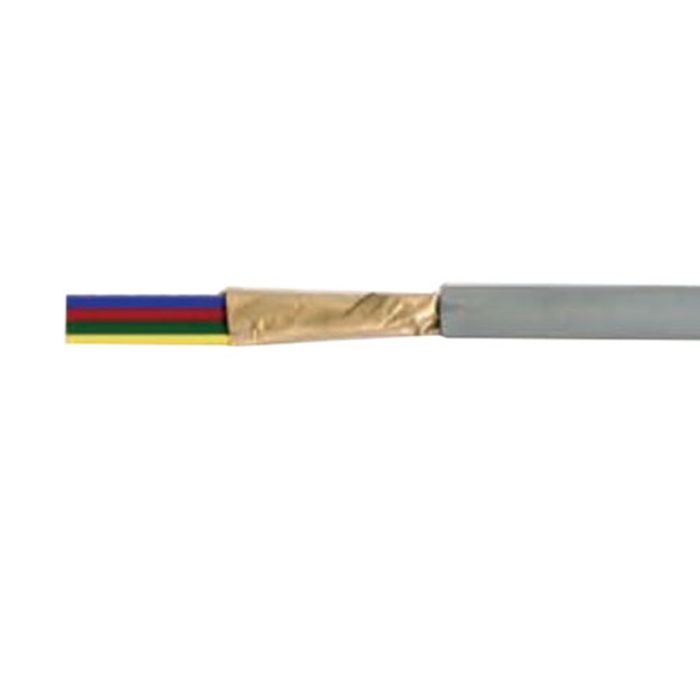

Tycab 0.4mm 4 Core Grey Data Cable Overall Screened PVC/PVC
Tycab 0.4mm 4 Core Grey Data Cable Overall Screened PVC/PVC
In stock
SKU
TYCDMC41402-SY-100
Data Cable, 0.4 mm, Oxygen Free Copper, 0.3 kV, 2.8 Amp, 4 Core, 14/0.2 mm Strands, Overall Screened Screen, 5.3 mm Overall Diameter, 0.26 mm Insulation Thickness, 0.76 mm Sheath Thickness, 44.8 Ohm/km Conductor Resistance, Aluminium/Polyester Tape Screen, Red/Blue/Green/Yellow Core, PVC Insulation, PVC Sheath, Grey Sheath, 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS S008, RS232
| Brand | Tycab |
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | DMC41402-SY-100 |
| Conductor Resistance | 44.8 Ohm/km |
| Conductor Size | 0.4 mm |
| Conductor Type | Oxygen Free Copper |
| Core Colours | Red/Blue/Green/Yellow |
| Current | 2.8 Amp |
| Insulation Material | PVC |
| Insulation Thickness | 0.26 mm |
| Number of Cores | 4 Core |
| Overall Diameter | 5.3 mm |
| Product Type | Data Cable |
| Please Note | RS232 |
| Screen Format | Overall Screened |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Grey |
| Sheath Material | PVC |
| Sheath Thickness | 0.76 mm |
| Temperature | 75 deg C |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS S008 |
| Stranding | 14/0.2 mm |
| Voltage | 0.3 kV |
Description
Data Cable, 0.4 mm, Oxygen Free Copper, 0.3 kV, 2.8 Amp, 4 Core, 14/0.2 mm Strands, Overall Screened Screen, 5.3 mm Overall Diameter, 0.26 mm Insulation Thickness, 0.76 mm Sheath Thickness, 44.8 Ohm/km Conductor Resistance, Aluminium/Polyester Tape Screen, Red/Blue/Green/Yellow Core, PVC Insulation, PVC Sheath, Grey Sheath, 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS S008, RS232
