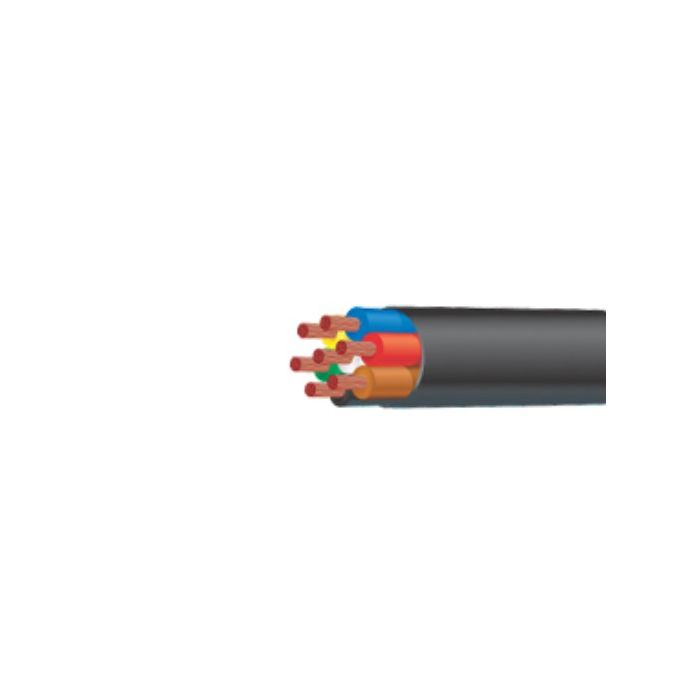

Tycab Trailer Cable 7 Core 4mm 50VAC/120VDC PVC/PVC Black
Tycab Trailer Cable 7 Core 4mm 50VAC/120VDC PVC/PVC Black
In stock
SKU
TYCATC72603-BK-30
Trailer Cable, 7 Core, 1.84 mm, 4 mm, Oxygen Free Plain Copper, 50/120 Volt, 14 Amp, 23/0.32 mm Strands, 8.9 mm Overall Diameter, 0.4 mm Insulation Thickness, 0.6 mm Sheath Thickness, Conductor Resistance: 10.3 Ohm/km, V-90 PVC Insulation, 5V-90 PVC Sheath, White Yellow Brown Red Green Black Blue Cores, Black Sheath, 30 to 70 deg C
| Brand | Tycab |
|---|---|
| Standard Pack Size | 30 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | ATC72603-BK-30 |
| Conductor Resistance | 10.3 Ohm/km |
| Conductor Size | 1.84 mm |
| Core Colours | White/Blue/Red/Black/Yellow/Green/Brown |
| Conductor Type | Oxygen Free Copper |
| Current | 14 Amp |
| Insulation Material | V-90 PVC |
| Number of Cores | 7 Core |
| Insulation Thickness | 0.4 mm |
| Overall Diameter | 8.9 mm |
| Product Type | Trailer Cable |
| Sheath Colour | Black |
| Sheath Thickness | 0.6 mm |
| Sheath Material | 5V-90 PVC |
| Stranding | 23/0.32 mm |
| Temperature | 30 to 70 deg C |
| Voltage | 50-120 Volt |
Description
Trailer Cable, 7 Core, 1.84 mm, 4 mm, Oxygen Free Plain Copper, 50/120 Volt, 14 Amp, 23/0.32 mm Strands, 8.9 mm Overall Diameter, 0.4 mm Insulation Thickness, 0.6 mm Sheath Thickness, Conductor Resistance: 10.3 Ohm/km, V-90 PVC Insulation, 5V-90 PVC Sheath, White Yellow Brown Red Green Black Blue Cores, Black Sheath, 30 to 70 deg C
