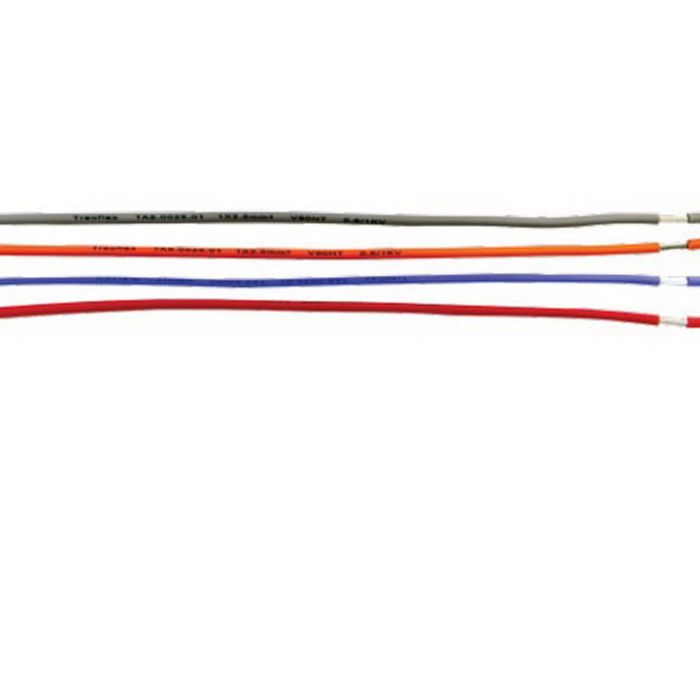

Treotham Treoflex High Temperature Flexible Wire Single Insulated 1 Core 0.75mm 0.6/1kV Copper V90HT PVC Blue
Treotham Treoflex High Temperature Flexible Wire Single Insulated 1 Core 0.75mm 0.6/1kV Copper V90HT PVC Blue
In stock
SKU
TRETA8.0007.01.BE
Flexible Wire, Single Insulated, High Temperature, 1 Core, 0.75 mm, Tinned Annealed Copper, 0.6/1 kV, 7.5 Amp, 24/0.2 mm Strands, 2.5 mm Overall Diameter, 7.5 mm Bend Radius, 0.8 mm Insulation Thickness, Conductor Resistance: 26 Ohm/km, V-90HT PVC Insulation, Unsheathed, Blue Insulation, -20 to 90 deg C, AS/NZS 1125, AS/NZS 3808, IEC60332-1, AS/NZS 5000.1
| Features |
|
|---|---|
| Brand | Treotham |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | RO |
| Vendor Product | TA8.0007.01.BE |
| Bend Radius | 7.5 mm |
| Conductor Resistance | 26 Ohm/km |
| Conductor Type | Tinned Annealed Copper |
| Conductor Size | 0.75 mm |
| Current | 7.5 Amp |
| Insulation Material | V-90HT PVC |
| Insulation Colour | Blue |
| Insulation Thickness | 0.8 mm |
| Overall Diameter | 2.5 mm |
| Number of Cores | 1 Core |
| Product Type | Flexible Cable High Temperature |
| Sheath Material | Unsheathed |
| Standards | AS/NZS 1125 AS/NZS 3808 IEC60332-1 AS/NZS 5000.1 |
| Stranding | 24/0.2 mm |
| Temperature | -20 to 90 deg C |
| Voltage | 0.6-1 kV |
Description
Flexible Wire, Single Insulated, High Temperature, 1 Core, 0.75 mm, Tinned Annealed Copper, 0.6/1 kV, 7.5 Amp, 24/0.2 mm Strands, 2.5 mm Overall Diameter, 7.5 mm Bend Radius, 0.8 mm Insulation Thickness, Conductor Resistance: 26 Ohm/km, V-90HT PVC Insulation, Unsheathed, Blue Insulation, -20 to 90 deg C, AS/NZS 1125, AS/NZS 3808, IEC60332-1, AS/NZS 5000.1
