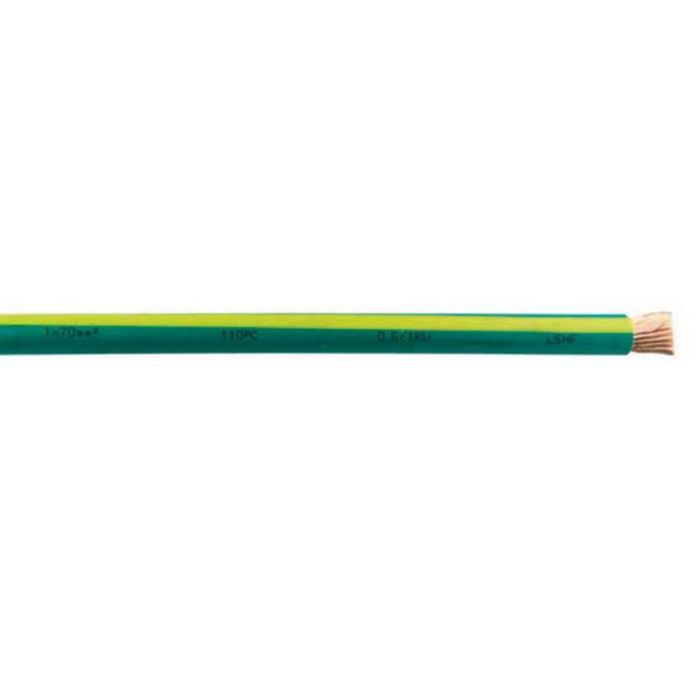

Treotham Treoflex Flexible Wire Single Insulated 1 Core 6mm 0.6/1kV Tinned Copper X-HF-110 Green/Yellow
Treotham Treoflex Flexible Wire Single Insulated 1 Core 6mm 0.6/1kV Tinned Copper X-HF-110 Green/Yellow
In stock
SKU
TRETA4.0060.01
Flexible Cable, 6 mm, Tinned Copper, 0.6-1 kV, 1 Core, 176/0.2mm Strands, 3.3 mm Overall Diameter, 19.8 mm Bend Radius, 0.7 mm Insulation Thickness, 3.39 Ohm/km Conductor Resistance, X-HF-110 Insulation, Green/Yellow Insulation, Unsheathed Sheath, -40 to 110 deg C, AS/NZS 1125 AS/NZS 3808 IEC60332-1 IEC60332-3(A) IEC 61034
| Features |
|
|---|---|
| Brand | Treotham |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | TA4.0060.01 |
| Bend Radius | 19.8 mm |
| Conductor Resistance | 3.39 Ohm/km |
| Conductor Size | 6 mm |
| Conductor Type | Tinned Copper |
| Insulation Colour | Green/Yellow |
| Insulation Material | X-HF-110 |
| Insulation Thickness | 0.7 mm |
| Overall Diameter | 3.3 mm |
| Number of Cores | 1 Core |
| Product Type | Flexible Cable |
| Sheath Material | Unsheathed |
| Standards | AS/NZS 1125 AS/NZS 3808 IEC60332-1 IEC60332-3(A) IEC 61034 |
| Stranding | 176/0.2mm |
| Temperature | -40 to 110 deg C |
| Voltage | 0.6-1 kV |
Description
Flexible Cable, 6 mm, Tinned Copper, 0.6-1 kV, 1 Core, 176/0.2mm Strands, 3.3 mm Overall Diameter, 19.8 mm Bend Radius, 0.7 mm Insulation Thickness, 3.39 Ohm/km Conductor Resistance, X-HF-110 Insulation, Green/Yellow Insulation, Unsheathed Sheath, -40 to 110 deg C, AS/NZS 1125 AS/NZS 3808 IEC60332-1 IEC60332-3(A) IEC 61034
