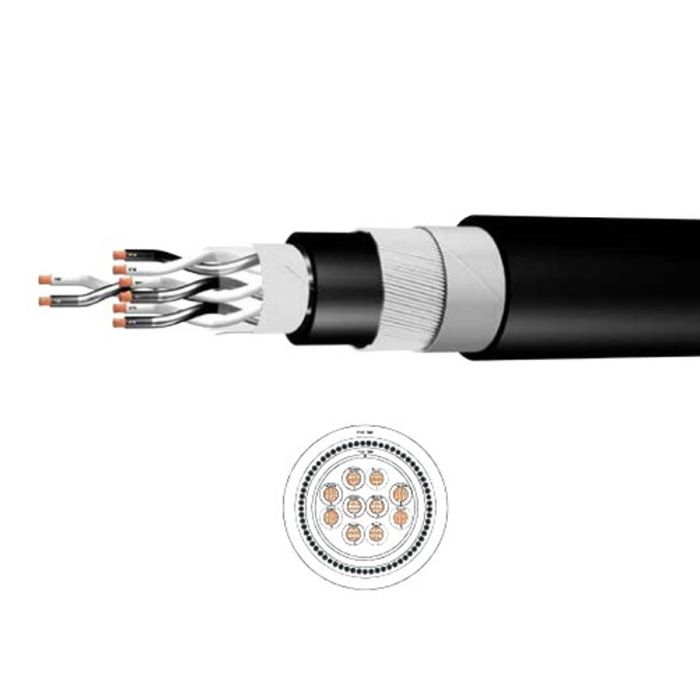

Treotham Machlink 110 Instrumentation Cable Armoured 2 Pair Overall Screened 0.5mm PVC/PVC Black
Treotham Machlink 110 Instrumentation Cable Armoured 2 Pair Overall Screened 0.5mm PVC/PVC Black
In stock
SKU
TRETA11.05.02.02
Instrumentation Cable Armoured, 0.5 mm, Class 2 Annealed Copper, 110-150 Volt, 2 Pair, 7/0.3 mm Strands, Overall Screened Screen, 12.85 mm Overall Diameter, 154.2 mm Bend Radius, 38.4 Ohm/km Conductor Resistance, 140 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium Foil/Polyester Tape Screen, Black/White Numerals Core, V-90 PVC Insulation, V-90 PVC Sheath, Black Sheath, -25 to 90 deg C, AS/NZS 1125 AS/NZS 3808 IEC 332-3A AS 2381.7
| Brand | Treotham |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | TA11.05.02.02 |
| Bend Radius | 154.2 mm |
| Conductor Resistance | 38.4 Ohm/km |
| Conductor Size | 0.5 mm |
| Core Colours | Black/White Numerals |
| Conductor Type | Class 2 Annealed Copper |
| Insulation Material | V-90 PVC |
| Insulation Resistance | 140 MOhm/km |
| Number of Pairs | 2 Pair |
| Overall Diameter | 12.85 mm |
| Screen Coverage | 100% |
| Product Type | Instrumentation Cable Armoured |
| Screen Format | Overall Screened |
| Screen Material | Aluminium Foil/Polyester Tape |
| Sheath Colour | Black |
| Sheath Material | V-90 PVC |
| Standards | AS/NZS 1125 AS/NZS 3808 IEC 332-3A AS 2381.7 |
| Stranding | 7/0.3 mm |
| Temperature | -25 to 90 deg C |
| Voltage | 110-150 Volt |
Description
Instrumentation Cable Armoured, 0.5 mm, Class 2 Annealed Copper, 110-150 Volt, 2 Pair, 7/0.3 mm Strands, Overall Screened Screen, 12.85 mm Overall Diameter, 154.2 mm Bend Radius, 38.4 Ohm/km Conductor Resistance, 140 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium Foil/Polyester Tape Screen, Black/White Numerals Core, V-90 PVC Insulation, V-90 PVC Sheath, Black Sheath, -25 to 90 deg C, AS/NZS 1125 AS/NZS 3808 IEC 332-3A AS 2381.7
