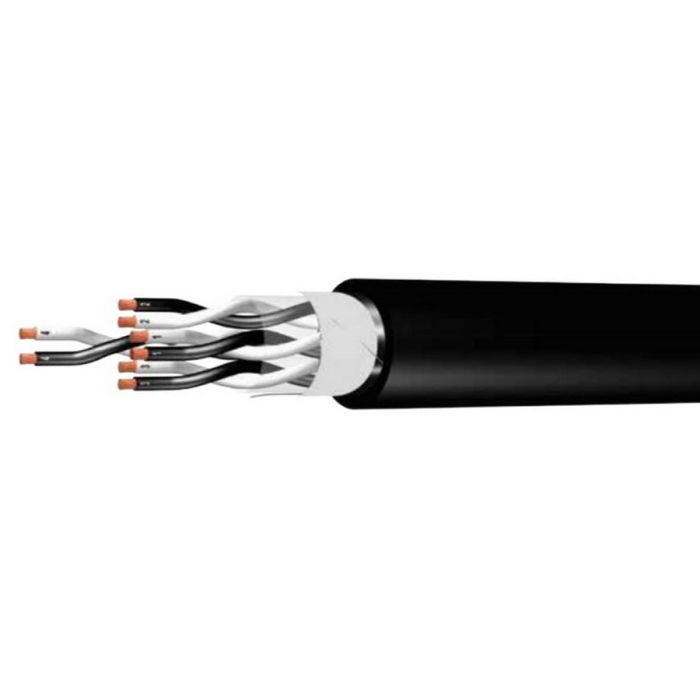

Treotham 1.5mm 16 Pair Instrumentation Cable Unarmoured Overall Screened
Treotham 1.5mm 16 Pair Instrumentation Cable Unarmoured Overall Screened
In stock
SKU
TRETA10.15.16.02
Instrumentation Cable, Unarmoured, 1.5 mm, Annealed Copper, 110-150 Volt, 16 Pair, 7/0.5 mm Strands, Overall Screened Screen, 20.04 mm Overall Diameter, 240.48 mm During Installation/120.24 mm After Installation Bend Radius, 13.6 Ohm/km Conductor Resistance, 140 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, V-90 PVC Insulation, V-90 PVC Sheath, Black Sheath, -25 to 90 deg C, EN 50288
| Brand | Treotham |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | TA10.15.16.02 |
| Conductor Size | 1.5 mm |
| Conductor Resistance | 13.6 Ohm/km |
| Conductor Type | Annealed Copper |
| Bend Radius | 240.48 mm During Installation/120.24 mm After Installation |
| Core Colours | Black/White Numerals |
| Insulation Resistance | 140 MOhm/km |
| Insulation Material | V-90 PVC |
| Number of Pairs | 16 Pair |
| Overall Diameter | 20.04 mm |
| Product Type | Instrumentation Cable Unarmoured |
| Screen Coverage | 100% |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Black |
| Screen Format | Overall Screened |
| Sheath Material | V-90 PVC |
| Standards | EN 50288 |
| Stranding | 7/0.5 mm |
| Voltage | 110-150 Volt |
| Temperature | -25 to 90 deg C |
Description
Instrumentation Cable, Unarmoured, 1.5 mm, Annealed Copper, 110-150 Volt, 16 Pair, 7/0.5 mm Strands, Overall Screened Screen, 20.04 mm Overall Diameter, 240.48 mm During Installation/120.24 mm After Installation Bend Radius, 13.6 Ohm/km Conductor Resistance, 140 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, V-90 PVC Insulation, V-90 PVC Sheath, Black Sheath, -25 to 90 deg C, EN 50288
