Tridonic Electronic Transformer 70.7W 220-240V IP20 280mm F/2x36 T8 PRO 2 Lamps Luminaries

Tridonic Electronic Transformer 70.7W 220-240V IP20 280mm F/2x36 T8 PRO 2 Lamps Luminaries

In stock
SKU
THN22185217
Add to Compare

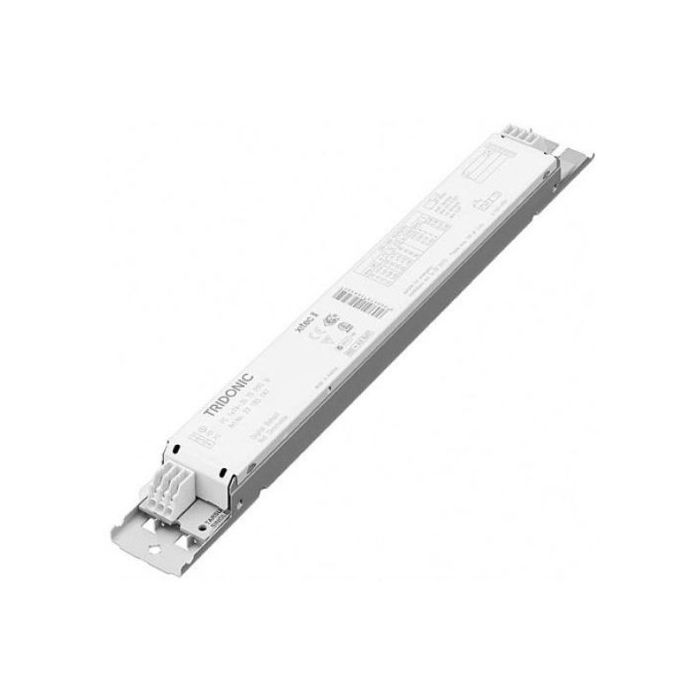

main product photo
Electronic Transformer, Fluorescent, 220-240 Volt, 70.7 Watt, 50/60 Hz, Ballast Factor: 0.99/0.98, Dimmable. IP20, For Use With: 2x36 T8 PRO 2 Lamps Luminaries, -25 to 60 deg C, 28 mm Height, 30 mm Width, 280 mm Length
More Information
More Information
Features
  • Highest possible energy class CELMA EEI = A2 BAT
  • Nominal life-time up to 100,000 hrs (at ta 50 deg C with a failure rate <=0.1% per 1,000 hrs)
  • Large temperature range
  • Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
  • Precise lamp operation using adjustment of lamp parameters
  • Advanced SMART-Heating for min. 50,000 starts without replacement of lamps
  • Constant luminous flux irrespective of fluctuations in mains voltage
  • Designed for THD <10 %
  • For luminaries of protection class I and protection class II
  • Automatic start after replacement of defective lamps
Brand Tridonic
Standard Pack Size 1
UNSPSC Class 39101900
UOM EA
Vendor Product 22185217
Ballast Factor 0.99/0.98
Dimmable Dimmable
For Use With 2x36 T8 PRO 2 Lamps Luminaries
Frequency 50/60 Hz
Height 28 mm
IP Rating IP20
Length 280 mm
Lamp Type Fluorescent
Product Type Lighting Spares
Temperature -25 to 60 deg C
Wattage 70.7 Watt
Voltage 220-240 Volt
Width 30 mm

Description

Electronic Transformer, Fluorescent, 220-240 Volt, 70.7 Watt, 50/60 Hz, Ballast Factor: 0.99/0.98, Dimmable. IP20, For Use With: 2x36 T8 PRO 2 Lamps Luminaries, -25 to 60 deg C, 28 mm Height, 30 mm Width, 280 mm Length
