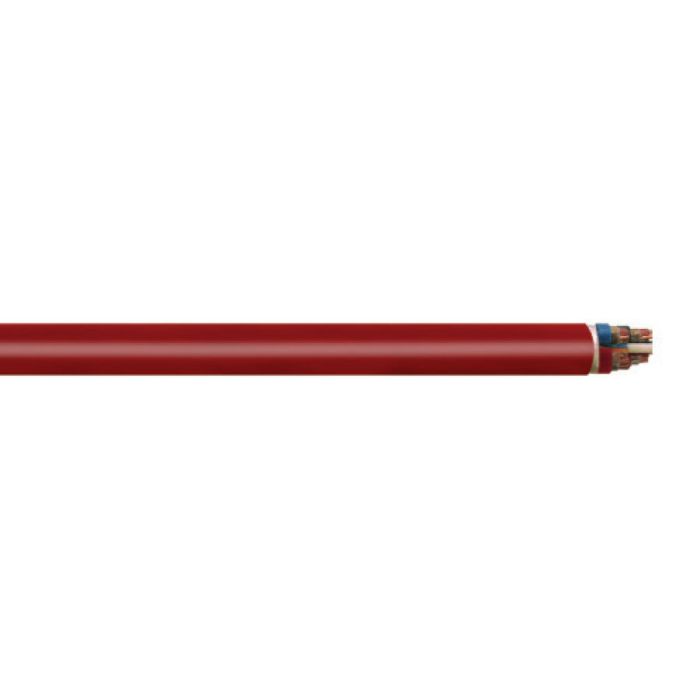

Tele Fonika Kables 4 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 1mtr
Tele Fonika Kables 4 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 1mtr
In stock
SKU
TFKFR4G4R
Fire Rated Flexible Cable, 3 Core & Earth, 4 mm, Class 5 Stranded Bare Copper, 0.6/1 kV, 2.5 mm Earth Conductor, 14.6 mm Overall Diameter, 116.8 mm Bend Radius, X-HF-110 Insulation, HFS-110-TP Sheath, Red Sheath, WS52W, -40 to 110 deg C
| Features |
|
|---|---|
| Brand | Tele Fonika Kables |
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | FR4G4R |
| AS3013 Rating | WS52W |
| Bend Radius | 116.8 mm |
| Conductor Size | 4 mm |
| Conductor Type | Class 5 Stranded Copper |
| Earth Conductor Size | 2.5 mm |
| Insulation Material | X-HF-110 |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 14.6 mm |
| Product Type | Fire Rated Cable |
| Sheath Colour | Red |
| Sheath Material | HFS-110-TP |
| Temperature | -40 to 110 deg C |
| Voltage | 0.6-1 kV |
Description
Fire Rated Flexible Cable, 3 Core & Earth, 4 mm, Class 5 Stranded Bare Copper, 0.6/1 kV, 2.5 mm Earth Conductor, 14.6 mm Overall Diameter, 116.8 mm Bend Radius, X-HF-110 Insulation, HFS-110-TP Sheath, Red Sheath, WS52W, -40 to 110 deg C
