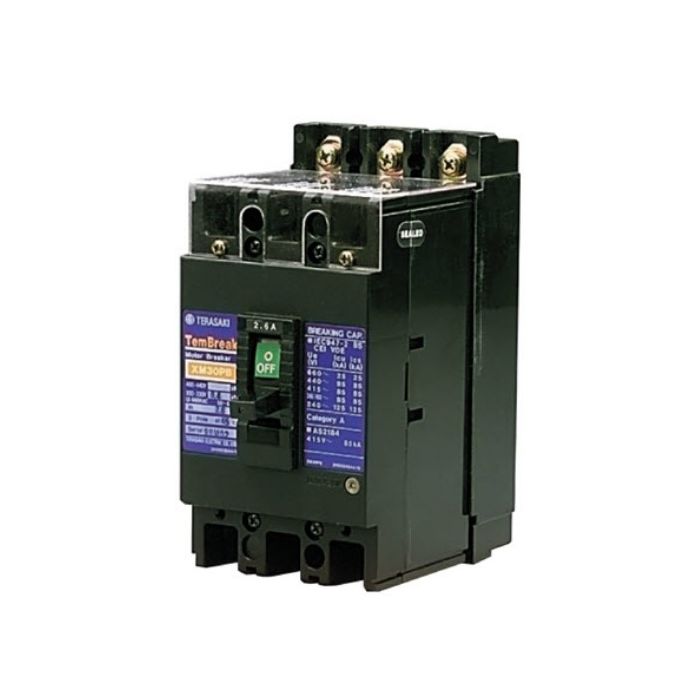

Terasaki Motor Rated Moulded Case Circuit Breaker Fixed Hydraulic Fixed Magnetic 3 Pole 85 kA 2 Amp
Terasaki Motor Rated Moulded Case Circuit Breaker Fixed Hydraulic Fixed Magnetic 3 Pole 85 kA 2 Amp
In stock
SKU
TERXM30PS/2
Motor Rated Moulded Case Circuit Breaker, 525 Volt AC, 2 Amp, 50/60 Hz, Interrupt Capacity: 85 kA, Number of Poles: 3, 1, 3, 30 AF Frame, Fixed Hydraulic, Fixed Magnetic Trip, Screw Terminal, Front,-5 to 60 deg C, 148mm Height x 78mm Width x 102mm Depth
| Features |
|
|---|---|
| Brand | Terasaki |
| Range Name | TemBreak |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | XM30PB23P |
| Current | 2 Amp |
| Depth | 102 mm |
| Frame Type | 30 AF |
| Frequency | 50/60 Hz |
| Height | 148 mm |
| Interrupt Capacity | 85 kA |
| Mounting Method | Front |
| Number Of Poles | 3 Pole |
| Product Type | MCCBs |
| Temperature | -5 to 60 deg C |
| Terminal Type | Screw |
| Trip Type | Fixed Hydraulic/Fixed Magnetic |
| Voltage | 525 Volt |
| Width | 78 mm |
Description
Motor Rated Moulded Case Circuit Breaker, 525 Volt AC, 2 Amp, 50/60 Hz, Interrupt Capacity: 85 kA, Number of Poles: 3, 1, 3, 30 AF Frame, Fixed Hydraulic, Fixed Magnetic Trip, Screw Terminal, Front,-5 to 60 deg C, 148mm Height x 78mm Width x 102mm Depth
