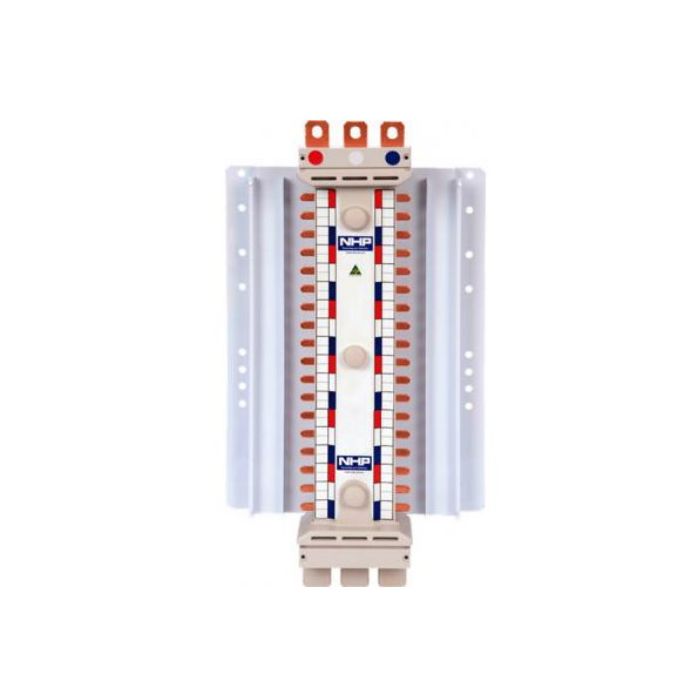

Terasaki Chassis 96 Pole 3PH 250A 415VAC For Concept DIN-T

Name: Chassis 96Pole 3PH 250A 415VAC For Concept DIN-T
SKU: TERNC296183U
Availability: InStock

In stock

SKU

TERNC296183U

Chassis, 415 VAC, 250 Amp, 3, 96 Poles, For Use With: Concept DIN-T, IP20, 890mm Height, 250mm Width, 82mm Depth

More Information
Features	Encapsulated busbar (no insulation coating required) Withstand ratings 250 Amp 25kA 0.1S, (20kA 0.3S, 10kA 1.0S) Withstand ratings 400 Amp 30kA 0.1S, (25kA 0.3S, 13kA 1.0S) Busbar direct connect to 160 or 250 Amp switch saving space Tee-offs 50% capped Tee-offs 50% capped IP20 connection kits to 250A MCCB-touch protection Interchangeable with CD chassis allows older boards to be upgraded
Brand	Terasaki
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	NC296183U
Current	250 Amp
Depth	82 mm
For Use With	Concept DIN-T
IP Rating	IP20
Height	890 mm
Number Of Poles	96 Pole
Phase	3 Phase
Product Type	simple
Voltage	415 Volt
Width	250 mm

Description

Chassis, 415 VAC, 250 Amp, 3, 96 Poles, For Use With: Concept DIN-T, IP20, 890mm Height, 250mm Width, 82mm Depth
