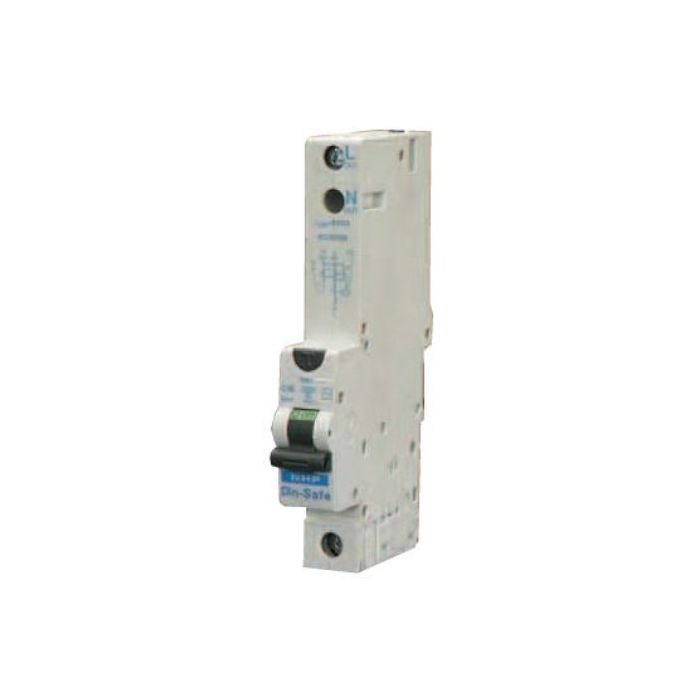

Terasaki Combination RCD Circuit Breaker RCBO 1P+ N 32 Amp 240V AC 10kA 1Module 18mm DIN 35 Rail
Terasaki Combination RCD Circuit Breaker RCBO 1P+ N 32 Amp 240V AC 10kA 1Module 18mm DIN 35 Rail
In stock
SKU
TERDSRCBH3210A
Combination RCD Circuit Breaker RCBO, 32 Amp, 240 Volt AC, 50/60 Hz, Interrupt Capacity: 10 kA, Trip Sensitivity: 10 mA, Number of Poles: 1P + N, Number of Modules: 1, 18mm Module Width, Trip Characteristic: C Curve, 1-16 mm/1-25 mm Flex/1-25 mm/1-35 mm Rigid Terminal Connection, Pin, Fork, IP40, IP20, DIN 35mm Rail,-5 to 55 deg C, 125mm Height, 18mm Width, 76mm Depth
| Features |
|
|---|---|
| Brand | Terasaki |
| Range Name | Din-Safe |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | DSRCBH3210A-NLA |
| Current | 32 Amp |
| Connection Type | Pin/ Fork |
| Depth | 76 mm |
| Height | 125 mm |
| Frequency | 50/60 Hz |
| IP Rating | IP40/20 |
| Interrupt Capacity | 10 kA |
| Modules | 1 Module 18 mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 1 Pole |
| Product Type | Combination RCBO |
| Terminal Connection | 1-16 sq-mm / 1-25 sq-mm Flex / 1-25 sq-mm / 1-35 sq-mm Rigid |
| Temperature | -5 to 55 deg C |
| Trip Characteristic | C Curve |
| Voltage | 240 Volt |
| Trip Sensitivity | 10 mA |
| Width | 18 mm |
Description
Combination RCD Circuit Breaker RCBO, 32 Amp, 240 Volt AC, 50/60 Hz, Interrupt Capacity: 10 kA, Trip Sensitivity: 10 mA, Number of Poles: 1P + N, Number of Modules: 1, 18mm Module Width, Trip Characteristic: C Curve, 1-16 mm/1-25 mm Flex/1-25 mm/1-35 mm Rigid Terminal Connection, Pin, Fork, IP40, IP20, DIN 35mm Rail,-5 to 55 deg C, 125mm Height, 18mm Width, 76mm Depth
