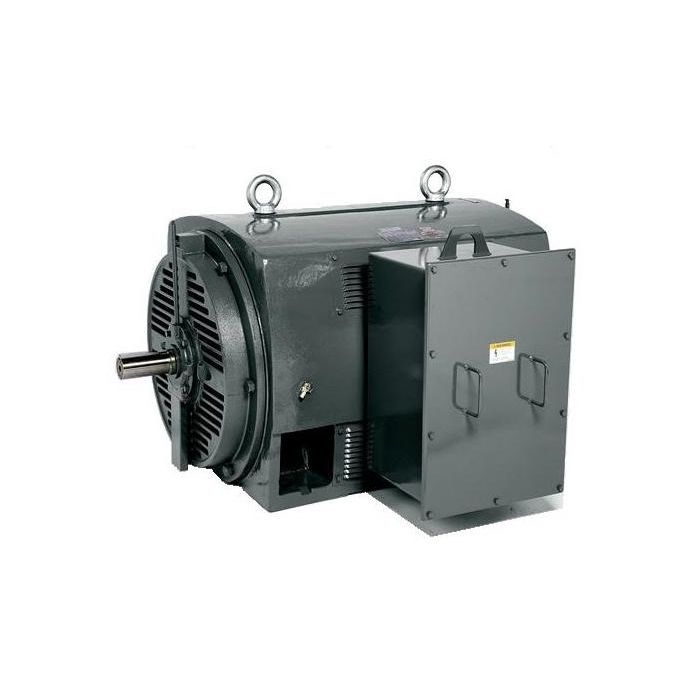

Teco Electric Motor Squirrel Cage Induction 2P 150kW 3Ph 415V C280SA Frame Horizontal Foot Mount
Teco Electric Motor Squirrel Cage Induction 2P 150kW 3Ph 415V C280SA Frame Horizontal Foot Mount
In stock
SKU
TEO056/0150C2
Electric Motor Squirrel Cage Induction, 415 Volt AC, 244 Amp, 150 kW, 50 Hz, 3 Phase, 2945 rpm, 2 Pole, IP23, Frame: C280SA, Shaft Size: 65 mm, Clockwise Rotation, Duty Cycle: S1, Vacuum De-Gassed High Quality Rolling Bearing, Torque: 486.417 N/m, Horizontal Foot Mount, Insulation Class: Class F, <80 deg C, Cast Iron, Light Grey, 892 mm Length x 653 mm Height
| Features |
|
|---|---|
| Brand | Teco |
| Range Name | Open Drip Proof |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 056/0150C2 |
| Colour | Light Grey |
| Current | 244 Amp |
| Bearing Type | Vacuum De-Gassed High Quality Rolling |
| Frame | Size C280SA |
| Height | 653 mm |
| Frequency | 50 Hz |
| Insulation Class | Class F |
| IP Rating | IP23 |
| Horsepower | 150 kW |
| Length | 892 mm |
| Mounting Method | Horizontal Foot |
| Material | Cast Iron |
| Number Of Poles | 2 Pole |
| Product Type | Motors SCIM |
| Phase | 3 Phase |
| Rotation | Clockwise |
| Shaft Size | 65 mm |
| Speed | 2945 rpm |
| Temperature | <80 deg C |
| Voltage | 415 Volt AC |
| Torque Rating | 486.417 N/m |
Description
Electric Motor Squirrel Cage Induction, 415 Volt AC, 244 Amp, 150 kW, 50 Hz, 3 Phase, 2945 rpm, 2 Pole, IP23, Frame: C280SA, Shaft Size: 65 mm, Clockwise Rotation, Duty Cycle: S1, Vacuum De-Gassed High Quality Rolling Bearing, Torque: 486.417 N/m, Horizontal Foot Mount, Insulation Class: Class F, <80 deg C, Cast Iron, Light Grey, 892 mm Length x 653 mm Height
