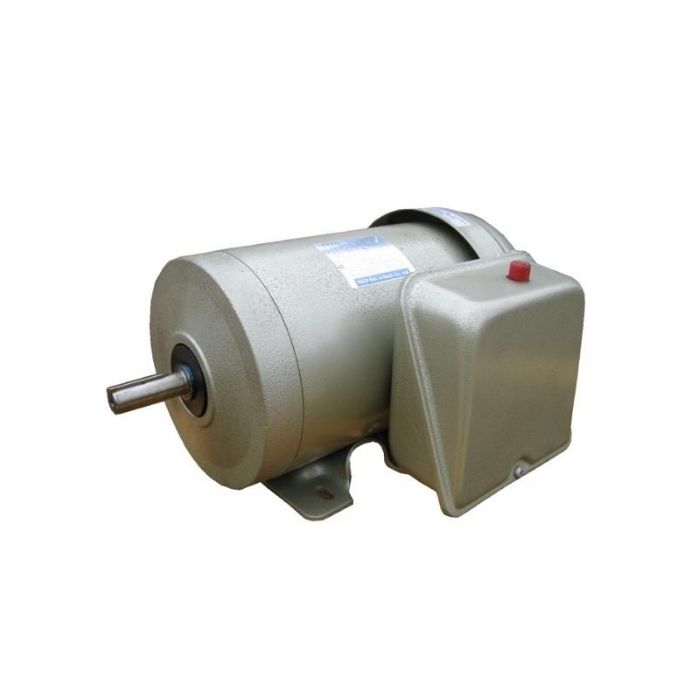

Teco Electric Motor Squirrel Cage Induction 2P 0.75kW 1Ph 240V B56 Frame Foot Mount
Teco Electric Motor Squirrel Cage Induction 2P 0.75kW 1Ph 240V B56 Frame Foot Mount
In stock
SKU
TEO037/0.75BB2
Electric Motor Squirrel Cage Induction, 240 Volt AC, 3.2 Amp, 0.75 kW, 50 Hz, 1 Phase, 2910 rpm, 2 Pole, IP44, Frame: B56, Shaft Size: 15.87 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 1.66 N/m, Foot Mount, Insulation Class: Class F, -10 to 40 deg C, Rolled Steel, 337 mm Length x 245 mm Width x 181 mm Height
| Features |
|
|---|---|
| Brand | Teco |
| Range Name | B56 Rolled Steel Imperial |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 037/0.75BB2 |
| Current | 3.2 Amp |
| Bearing Type | Single Row Deep Groove |
| Frame | Size B56 |
| Height | 181 mm |
| Frequency | 50 Hz |
| Insulation Class | Class F |
| IP Rating | IP44 |
| Horsepower | 0.75 kW |
| Length | 337 mm |
| Mounting Method | Foot |
| Material | Rolled Steel |
| Number Of Poles | 2 Pole |
| Product Type | Motors SCIM |
| Phase | 1 Phase |
| Rotation | Bi Directional |
| Shaft Size | 15.87 mm |
| Speed | 2910 rpm |
| Temperature | -10 to 40 deg C |
| Voltage | 240 Volt AC |
| Torque Rating | 1.66 N/m |
| Width | 245 mm |
Description
Electric Motor Squirrel Cage Induction, 240 Volt AC, 3.2 Amp, 0.75 kW, 50 Hz, 1 Phase, 2910 rpm, 2 Pole, IP44, Frame: B56, Shaft Size: 15.87 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 1.66 N/m, Foot Mount, Insulation Class: Class F, -10 to 40 deg C, Rolled Steel, 337 mm Length x 245 mm Width x 181 mm Height
