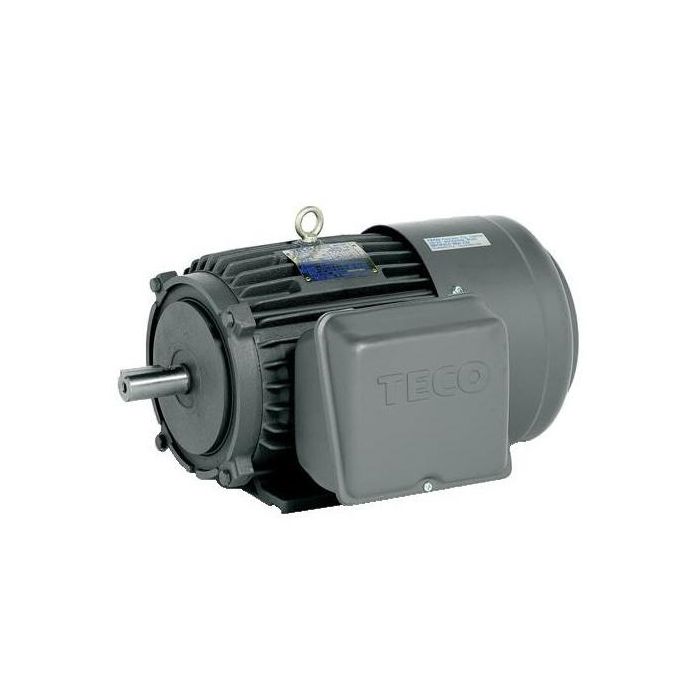

Teco Electric Motor Squirrel Cage Induction 2P 1.5kW 1Ph 240/480V D90S Frame Foot/Flange Mount
Teco Electric Motor Squirrel Cage Induction 2P 1.5kW 1Ph 240/480V D90S Frame Foot/Flange Mount
In stock
SKU
TEO036/E01.5BF2
Electric Motor Squirrel Cage Induction, 240/480 Volt AC, 9/4.5 Amp, 1.5 kW, 50 Hz, 1 Phase, 2910 rpm, 2 Pole, IP44, Frame: D90S, Shaft Size: 24 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 4.9 N/m, Foot/Flange Mount, Insulation Class: Class H/F, -10 to 40 deg C, Cast Iron, 406 mm Length x 200 mm Height
| Features |
|
|---|---|
| Brand | Teco |
| Range Name | BECY Cast Iron Metric |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 036/E01.5BF2 |
| Current | 9/4.5 Amp |
| Bearing Type | Single Row Deep Groove |
| Frame | Size D90S |
| Height | 200 mm |
| Frequency | 50 Hz |
| Insulation Class | Class H/F |
| IP Rating | IP44 |
| Horsepower | 1.5 kW |
| Length | 406 mm |
| Mounting Method | Foot/Flange |
| Material | Cast Iron |
| Number Of Poles | 2 Pole |
| Product Type | Motors SCIM |
| Phase | 1 Phase |
| Rotation | Bi Directional |
| Shaft Size | 24 mm |
| Speed | 2910 rpm |
| Temperature | -10 to 40 deg C |
| Voltage | 240-480 Volt AC |
| Torque Rating | 4.9 N/m |
Description
Electric Motor Squirrel Cage Induction, 240/480 Volt AC, 9/4.5 Amp, 1.5 kW, 50 Hz, 1 Phase, 2910 rpm, 2 Pole, IP44, Frame: D90S, Shaft Size: 24 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 4.9 N/m, Foot/Flange Mount, Insulation Class: Class H/F, -10 to 40 deg C, Cast Iron, 406 mm Length x 200 mm Height
