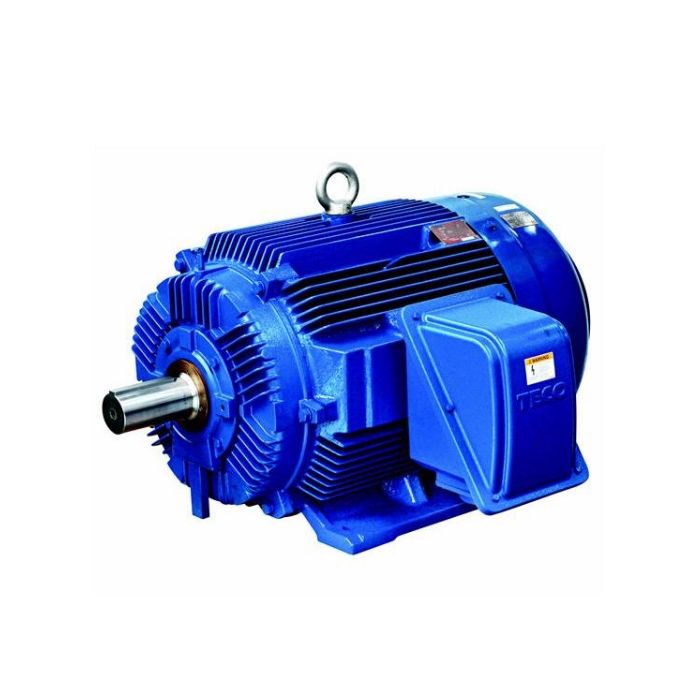

Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 0.75kW 3Ph 415V Shaft 19mm D80 Frame Flange Mount
Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 0.75kW 3Ph 415V Shaft 19mm D80 Frame Flange Mount
In stock
SKU
TEO022/0.75DF2S
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 1.48 Amp, 0.75 kW, 50 Hz, 3 Phase, 2825 rpm, 2 Pole, IP66, Frame: D80, Shaft Size: 19 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 2.53 N/m, Foot/Flange Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 282.5 mm Length x 180 mm Height
| Features |
|
|---|---|
| Brand | Teco |
| Range Name | Max E3 Premium |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 022/0.75DF2S |
| Current | 1.48 Amp |
| Colour | Blue |
| Bearing Type | Anti Fiction Ball |
| Frame | Size D80 |
| Frequency | 50 Hz |
| Height | 180 mm |
| Horsepower | 0.75 kW |
| Insulation Class | Class F |
| IP Rating | IP66 |
| Length | 282.5 mm |
| Material | Cast Iron |
| Mounting Method | Foot/Flange |
| Number Of Poles | 2 Pole |
| Phase | 3 Phase |
| Product Type | Motors Premium HE |
| Shaft Size | 19 mm |
| Rotation | Bi Directional |
| Service Factor | 1/1.15 p.u at Class B/F |
| Speed | 2825 rpm |
| Temperature | ?80 deg C |
| Torque Rating | 2.53 N/m |
| Voltage | 380-415 Volt AC |
Description
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 1.48 Amp, 0.75 kW, 50 Hz, 3 Phase, 2825 rpm, 2 Pole, IP66, Frame: D80, Shaft Size: 19 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 2.53 N/m, Foot/Flange Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 282.5 mm Length x 180 mm Height
