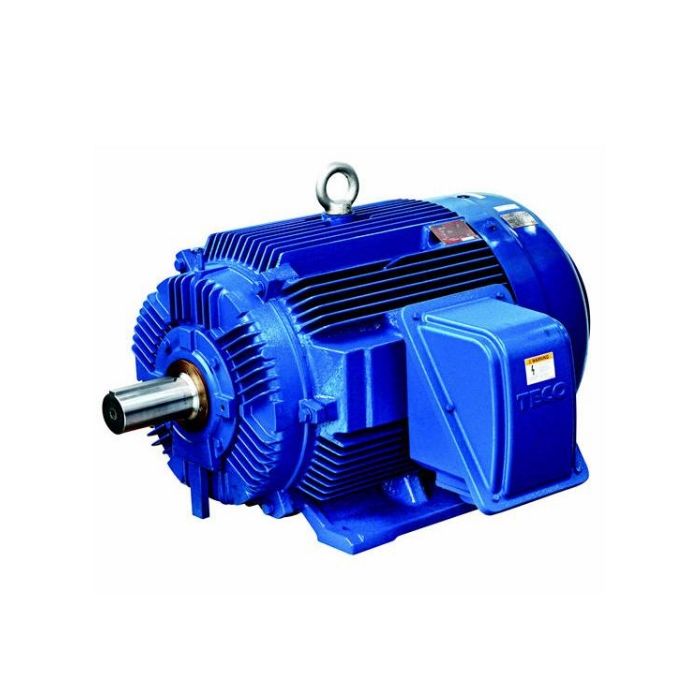

Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 45kW 3Ph 415V Shaft 55mm D225MA Frame Flange Mount
Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 45kW 3Ph 415V Shaft 55mm D225MA Frame Flange Mount
In stock
SKU
TEO015/0045DD2S
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 70.4 Amp, 45 kW, 50 Hz, 3 Phase, 2960 rpm, 2 Pole, IP66, Frame: D225MA, Shaft Size: 55 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 145 N/m, Flange Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 811 mm Length x 572 mm Height
| Features |
|
|---|---|
| Brand | Teco |
| Range Name | Max E3 Premium |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 015/0045DD2S |
| Colour | Blue |
| Current | 70.4 Amp |
| Bearing Type | Anti Fiction Ball |
| Frame | Size D225MA |
| Height | 572 mm |
| Frequency | 50 Hz |
| Insulation Class | Class F |
| IP Rating | IP66 |
| Horsepower | 45 kW |
| Length | 811 mm |
| Mounting Method | Flange |
| Material | Cast Iron |
| Number Of Poles | 2 Pole |
| Product Type | Motors Premium HE |
| Phase | 3 Phase |
| Rotation | Bi Directional |
| Service Factor | 1/1.15 p.u at Class B/F |
| Shaft Size | 55 mm |
| Speed | 2960 rpm |
| Temperature | ?80 deg C |
| Voltage | 380-415 Volt AC |
| Torque Rating | 145 N/m |
Description
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 70.4 Amp, 45 kW, 50 Hz, 3 Phase, 2960 rpm, 2 Pole, IP66, Frame: D225MA, Shaft Size: 55 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 145 N/m, Flange Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 811 mm Length x 572 mm Height
