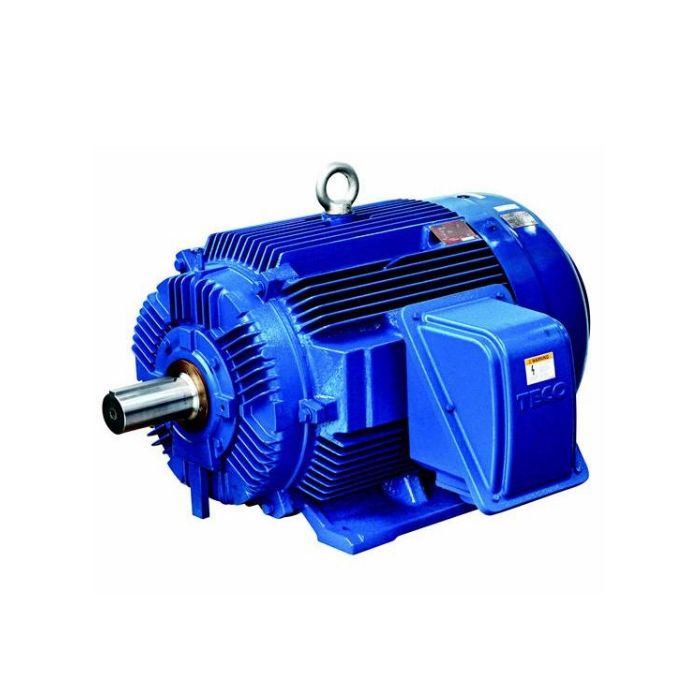

Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 4P 150kW 3Ph 415V Shaft 85mm D315MC Frame Foot Mount
Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 4P 150kW 3Ph 415V Shaft 85mm D315MC Frame Foot Mount
In stock
SKU
TEO006/0150D4S
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 245 Amp, 150 kW, 50 Hz, 3 Phase, 1485 rpm, 4 Pole, IP66, Frame: D315MC, Shaft Size: 85 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 964 N/m, Foot Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 1212 mm Length x 723 mm Height
| Features |
|
|---|---|
| Brand | Teco |
| Range Name | Max E3 Premium |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 006/0150D4S |
| Colour | Blue |
| Current | 245 Amp |
| Bearing Type | Anti Fiction Ball |
| Frame | Size D315MC |
| Height | 723 mm |
| Frequency | 50 Hz |
| Insulation Class | Class F |
| IP Rating | IP66 |
| Length | 1212 mm |
| Mounting Method | Foot |
| Material | Cast Iron |
| Number Of Poles | 4 Pole |
| Product Type | Motors Premium HE |
| Phase | 3 Phase |
| Rotation | Bi Directional |
| Service Factor | 1/1.15 p.u at Class B/F |
| Shaft Size | 85 mm |
| Speed | 1485 rpm |
| Temperature | ?80 deg C |
| Voltage | 380-415 Volt AC |
| Torque Rating | 964 N/m |
Description
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 245 Amp, 150 kW, 50 Hz, 3 Phase, 1485 rpm, 4 Pole, IP66, Frame: D315MC, Shaft Size: 85 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 964 N/m, Foot Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 1212 mm Length x 723 mm Height
