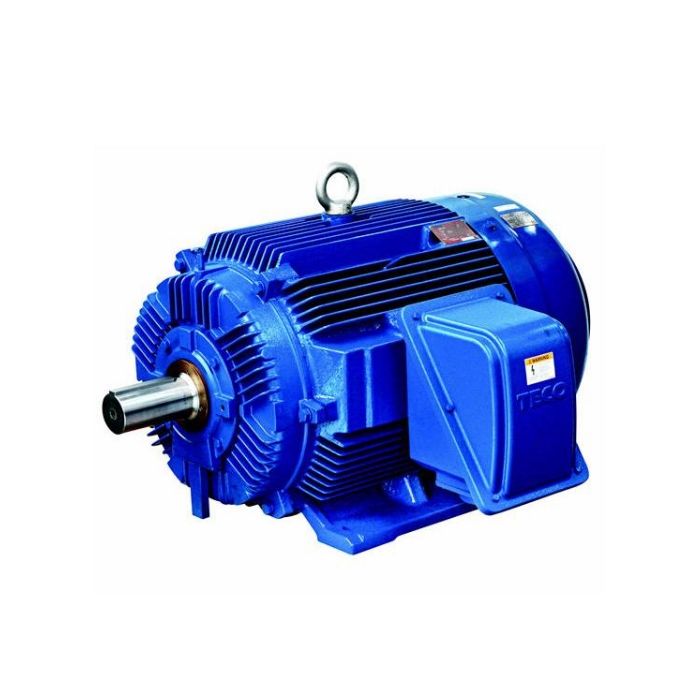

Teco Electric Motor Squirrel Cage Induction Mine Spec 2P 37kW 3Ph 380/415V Shaft 55mm D200LA Frame Foot Mount
Teco Electric Motor Squirrel Cage Induction Mine Spec 2P 37kW 3Ph 380/415V Shaft 55mm D200LA Frame Foot Mount
In stock
SKU
TEO005/H0037D2R
Electric Motor Squirrel Cage Induction Mine Spec, 380/415 Volt AC, 59.6 Amp, 50 HP, 50 Hz, 3 Phase, 2960 rpm, 37 kW Output, 2 Pole, IP66, Frame: D200LA, 55 mm Shaft, Rotation: Bi Directional-Low Noise, Power Factor: 91 at 100% Load, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Direct On Line Starting, Soft Starter/VVVF Duty, Torque: 119 N/m, Foot Mounting, Insulation Class: Class H, Efficiency: 94.9 at 100% Load, Cast Iron Frame, Finish: Orange Paint, 55 deg C, 770 mm Length x 469 mm Height
| Features |
|
|---|---|
| Brand | Teco |
| Range Name | Max E3 Mining |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 005/H0037D2R |
| Bearing Type | Ball |
| Colour | Orange |
| Current | 59.6 Amp |
| Efficiency | 94.9 at 100% Load |
| Frame | Size D200LA |
| Frame Material | Cast Iron |
| Frequency | 50 Hz |
| Height | 469 mm |
| Horsepower | 50 kW |
| IP Rating | IP66 |
| Length | 770 mm |
| Mounting Method | Foot |
| Insulation Class | Class H |
| Number Of Poles | 2 Pole |
| Output | 37 kW |
| Phase | 3 Phase |
| Rotation | Bi Directional-Low Noise |
| Product Type | Motors SCIM Mine Spec |
| Power Factor | 91 at 100% Load |
| Shaft Size | 55 mm |
| Speed | 2960 rpm |
| Service Factor | 1/1.15 p.u at Class B/F |
| Starting Method | DOL, Soft Starter/VVVF Duty |
| Temperature | 55 deg C |
| Torque Rating | 119 N/m |
| Voltage | 380-415 Volt AC |
Description
Electric Motor Squirrel Cage Induction Mine Spec, 380/415 Volt AC, 59.6 Amp, 50 HP, 50 Hz, 3 Phase, 2960 rpm, 37 kW Output, 2 Pole, IP66, Frame: D200LA, 55 mm Shaft, Rotation: Bi Directional-Low Noise, Power Factor: 91 at 100% Load, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Direct On Line Starting, Soft Starter/VVVF Duty, Torque: 119 N/m, Foot Mounting, Insulation Class: Class H, Efficiency: 94.9 at 100% Load, Cast Iron Frame, Finish: Orange Paint, 55 deg C, 770 mm Length x 469 mm Height
