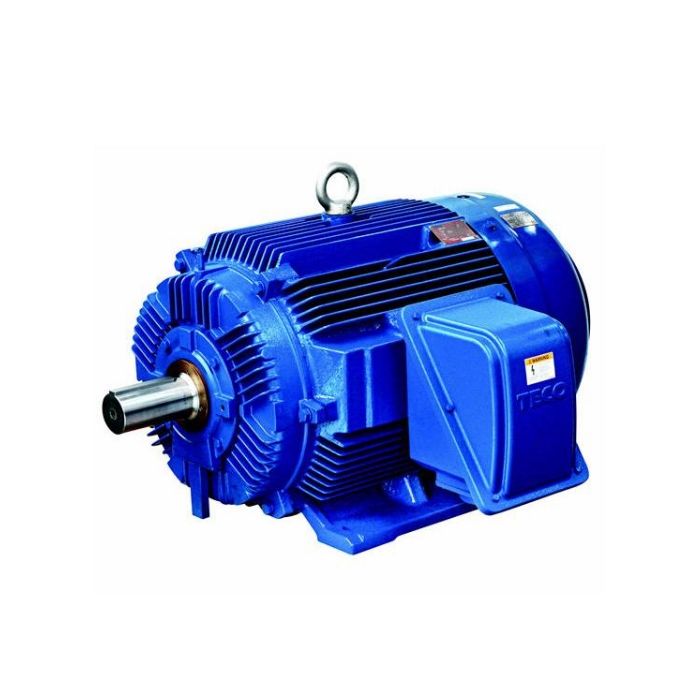

Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 4P 45kW 3Ph 415V Shaft 60mm D225MC Frame Foot Mount
Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 4P 45kW 3Ph 415V Shaft 60mm D225MC Frame Foot Mount
In stock
SKU
TEO005/0045D4S
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 76.7 Amp, 45 kW, 50 Hz, 3 Phase, 1480 rpm, 4 Pole, IP66, Frame: D225MC, Shaft Size: 60 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 290 N/m, Foot Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 841 mm Length x 524 mm Height
| Features |
|
|---|---|
| Brand | Teco |
| Range Name | Max E3 Premium |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 005/0045D4S |
| Current | 76.7 Amp |
| Colour | Blue |
| Bearing Type | Anti Fiction Ball |
| Frame | Size D225MC |
| Frequency | 50 Hz |
| Height | 524 mm |
| Horsepower | 45 kW |
| Insulation Class | Class F |
| IP Rating | IP66 |
| Length | 841 mm |
| Material | Cast Iron |
| Mounting Method | Foot |
| Number Of Poles | 4 Pole |
| Phase | 3 Phase |
| Product Type | Motors Premium HE |
| Shaft Size | 60 mm |
| Rotation | Bi Directional |
| Service Factor | 1/1.15 p.u at Class B/F |
| Speed | 1480 rpm |
| Temperature | ?80 deg C |
| Torque Rating | 290 N/m |
| Voltage | 380-415 Volt AC |
Description
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 76.7 Amp, 45 kW, 50 Hz, 3 Phase, 1480 rpm, 4 Pole, IP66, Frame: D225MC, Shaft Size: 60 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 290 N/m, Foot Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 841 mm Length x 524 mm Height
