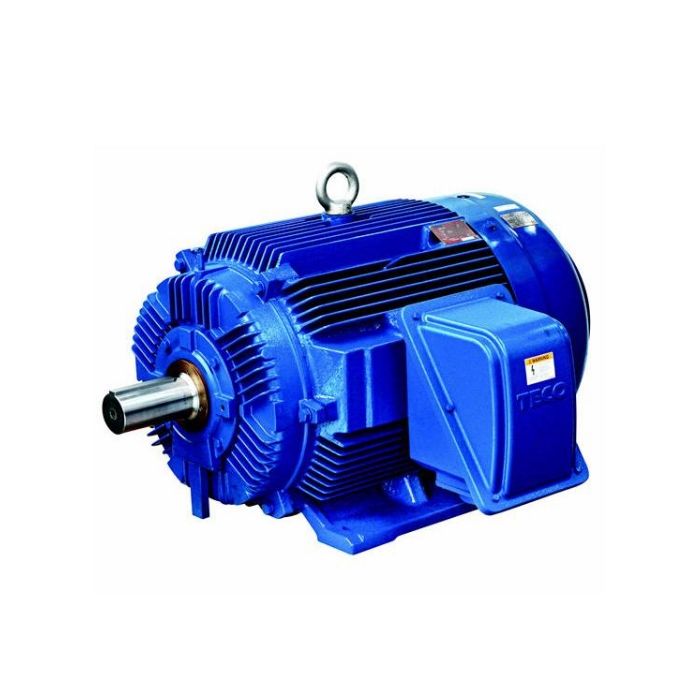

Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 18.5kW 3Ph 415V Shaft 48mm D180MC Frame Foot Mount
Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 18.5kW 3Ph 415V Shaft 48mm D180MC Frame Foot Mount
In stock
SKU
TEO004/0018D4S
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 33 Amp, 18.5 kW, 50 Hz, 3 Phase, 1480 rpm, 4 Pole, IP66, Frame: D180MC, Shaft Size: 48 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 119 N/m, Foot Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 672 mm Length x 431 mm Height
| Features |
|
|---|---|
| Brand | Teco |
| Range Name | Max E3 Premium |
| Standard Pack Size | 1 |
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | 004/0018D4S |
| Colour | Blue |
| Current | 33 Amp |
| Bearing Type | Anti Fiction Ball |
| Frame | Size D180MC |
| Height | 431 mm |
| Frequency | 50 Hz |
| Insulation Class | Class F |
| IP Rating | IP66 |
| Horsepower | 18.5 kW |
| Length | 672 mm |
| Mounting Method | Foot |
| Material | Cast Iron |
| Number Of Poles | 4 Pole |
| Product Type | Motors Premium HE |
| Phase | 3 Phase |
| Rotation | Bi Directional |
| Service Factor | 1/1.15 p.u at Class B/F |
| Shaft Size | 48 mm |
| Speed | 1480 rpm |
| Temperature | ?80 deg C |
| Voltage | 380-415 Volt AC |
| Torque Rating | 119 N/m |
Description
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 33 Amp, 18.5 kW, 50 Hz, 3 Phase, 1480 rpm, 4 Pole, IP66, Frame: D180MC, Shaft Size: 48 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 119 N/m, Foot Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 672 mm Length x 431 mm Height
