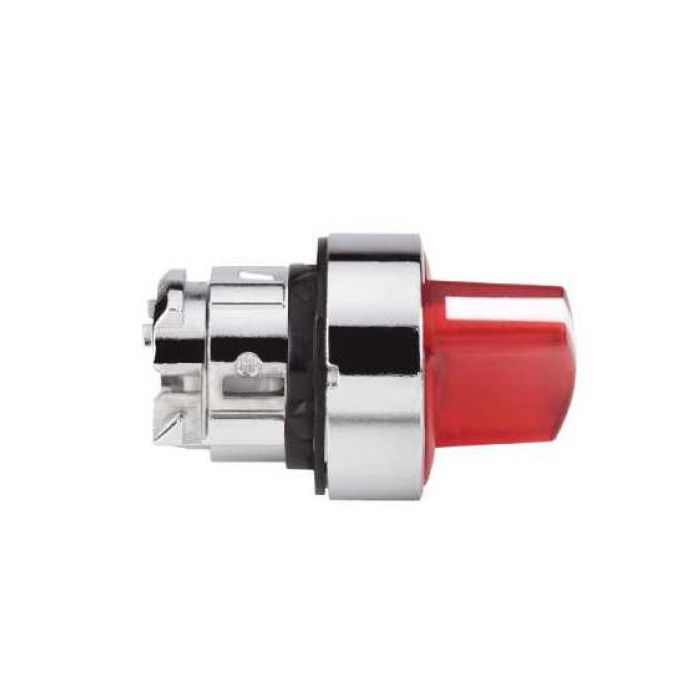

Schneider Rotary Selector Actuator Only 2 Position Metal Body Illuminated Spring Return From Right to Left White 22mm
Schneider Rotary Selector Actuator Only 2 Position Metal Body Illuminated Spring Return From Right to Left White 22mm
In stock
SKU
TEEZB4-BK1413
Rotary Selector Actuator, Standard Actuator Head, Spring Return From Right to Left, 1NO/1NC, 22mm Mounting Hole, 2 Position at 90 deg, Standard Handle Operator, Tightening Torque: 0.6 N/m, 1000000 Cycles, Screw Clamp Terminal, IP66, IP67, IP69, IP69K, NEMA 13/4X, Panel Mount, Metal Body, Chromium Plated Metal, White, -40 to 70 deg C, 28.5 mm Diameter, 29 mm Height, 29 mm Width, 43 mm Depth
| Brand | Schneider |
|---|---|
| Range Name | Harmony Style 4 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | ZB4BK1413 |
| Colour | White |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed |
| Depth | 43 mm |
| Diameter | 28.5 mm |
| Head Type | Standard |
| Height | 29 mm |
| Mounting Diameter | 22 mm |
| Mounting Method | Panel |
| NEMA Rating | NEMA 13/4X |
| Number of Positions | 2 at 90 deg |
| IP Rating | IP66/67/69/69K |
| Operating Cycles | 1000000 Cycles |
| Operator Action | Spring Return Right to Left |
| Operator Type | Standard Handle |
| Temperature | -40 to 70 deg C |
| Product Type | Selector Actuators Rotary |
| Tightening Torque | 0.6 N/m |
| Terminal Connection | Screw Clamp |
| Width | 29 mm |
Description
Rotary Selector Actuator, Standard Actuator Head, Spring Return From Right to Left, 1NO/1NC, 22mm Mounting Hole, 2 Position at 90 deg, Standard Handle Operator, Tightening Torque: 0.6 N/m, 1000000 Cycles, Screw Clamp Terminal, IP66, IP67, IP69, IP69K, NEMA 13/4X, Panel Mount, Metal Body, Chromium Plated Metal, White, -40 to 70 deg C, 28.5 mm Diameter, 29 mm Height, 29 mm Width, 43 mm Depth
