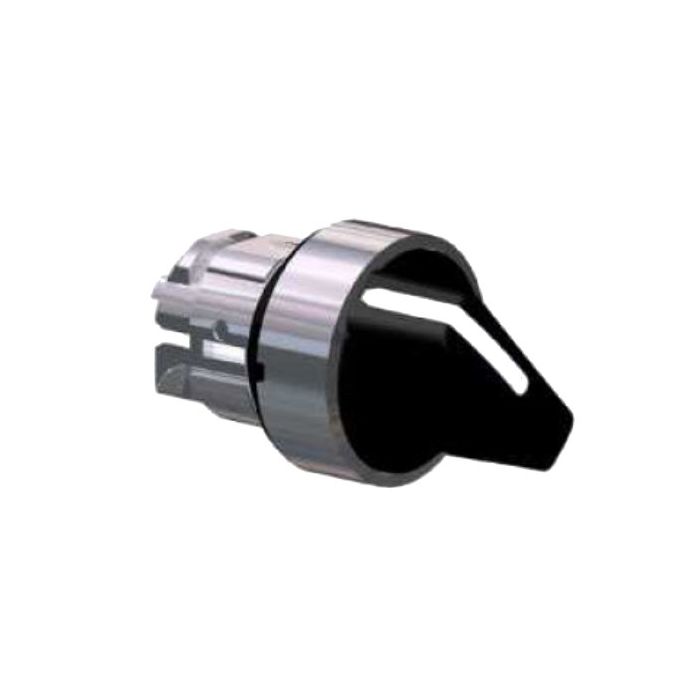

Schneider Rotary Selector Actuator Only 3 Position Metal Body Non Illuminated Spring Return to Center Black 22mm
Schneider Rotary Selector Actuator Only 3 Position Metal Body Non Illuminated Spring Return to Center Black 22mm
In stock
SKU
TEEZB4-BD5
Rotary Selector Actuator, 1 Normally Opened/1 Normally Closed Configuration, Standard Handle Operator, Spring Return Operator Action, 1000000 Cycles, 3 at 45 deg Position, Standard Head, Screw Clamp/Plug-in/Printed Circuit Board/Faston Terminal, 0.6 Nm Tightening Torque, Panel Mounting, 22.5 mm Mounting Diameter, IP67/69/69K, NEMA 13/4X, Chromium Plated Metal Bezel, Black, -40 to 70 deg C, 28.5 mm Diameter, 29 mm Height, 29 mm Width, 44 mm Depth
| Brand | Schneider |
|---|---|
| Range Name | Harmony Style 4 |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | ZB4BD5 |
| Colour | Black |
| Bezel Material | Chromium Plated Metal |
| Contact Configuration | 1 Normally Opened/1 Normally Closed |
| Depth | 44 mm |
| Diameter | 28.5 mm |
| Head Type | Standard |
| Height | 29 mm |
| Mounting Diameter | 22.5 mm |
| Mounting Method | Panel |
| NEMA Rating | NEMA 13/4X |
| Number of Positions | 3 at 45 deg |
| IP Rating | IP67/69/69K |
| Operating Cycles | 1000000 Cycles |
| Operator Action | Spring Return |
| Operator Type | Standard Handle |
| Temperature | -40 to 70 deg C |
| Product Type | Selector Actuators Rotary |
| Tightening Torque | 0.6 Nm |
| Terminal Connection | Screw Clamp/Plug-in/Printed Circuit Board/Faston |
| Width | 29 mm |
Description
Rotary Selector Actuator, 1 Normally Opened/1 Normally Closed Configuration, Standard Handle Operator, Spring Return Operator Action, 1000000 Cycles, 3 at 45 deg Position, Standard Head, Screw Clamp/Plug-in/Printed Circuit Board/Faston Terminal, 0.6 Nm Tightening Torque, Panel Mounting, 22.5 mm Mounting Diameter, IP67/69/69K, NEMA 13/4X, Chromium Plated Metal Bezel, Black, -40 to 70 deg C, 28.5 mm Diameter, 29 mm Height, 29 mm Width, 44 mm Depth
