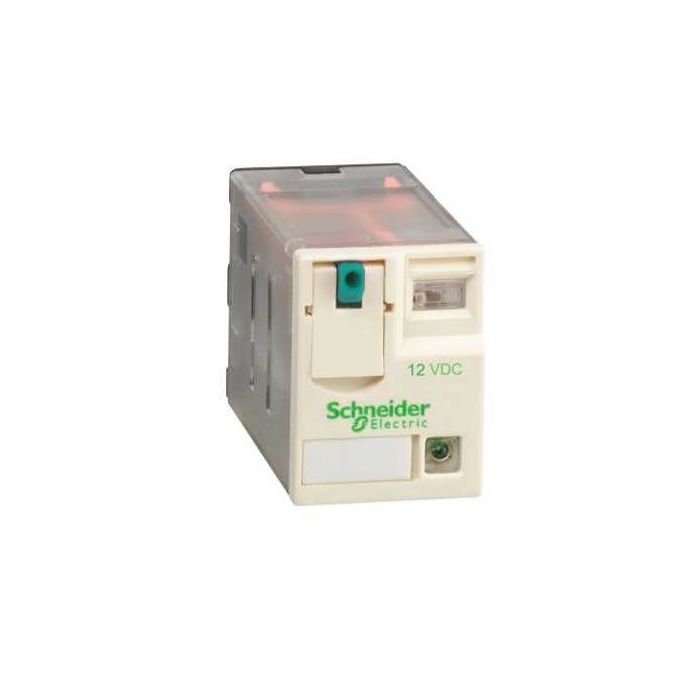

Schneider Miniature General Purpose Relay Plug-In Mount 2P 2CO 12A 12VDC 8 Pin Flat
Schneider Miniature General Purpose Relay Plug-In Mount 2P 2CO 12A 12VDC 8 Pin Flat
In stock
SKU
TEERXM-2AB2JD
Miniature General Purpose Relay, 12 Volt DC, 12 Amp, 8 Pin Flat, 2CO, 160 Ohm, Operating Time: 20 ms, <=1200 Cycles/hr Under Load/<=18000 Cycles/hr No-Load, IP40, Plug-In Mount, AgNi, -40 to 55 deg C, 27 mm Height, 21 mmm Width, 40 mm Depth
| Brand | Schneider |
|---|---|
| Range Name | Zelio RXM |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | RXM2AB2JD |
| Contact Material | AgNi |
| Contact Configuration | 2 Changeover |
| Height | 27 mm |
| IP Rating | IP40 |
| Depth | 40 mm |
| Current | 12 Amp |
| Operating Coil Voltage | 12 Volt DC |
| Mounting Method | Plug In |
| Operating Cycles | <=1200 Cycles/hr Under Load/<=18000 Cycles/hr No-Load |
| Operating Time | 20 ms |
| Pin Configuration | 8 Pin Flat |
| Product Type | Power Relays |
| Resistance | 160 Ohm |
| Temperature | -40 to 55 deg C |
| Width | 21 mmm |
Description
Miniature General Purpose Relay, 12 Volt DC, 12 Amp, 8 Pin Flat, 2CO, 160 Ohm, Operating Time: 20 ms, <=1200 Cycles/hr Under Load/<=18000 Cycles/hr No-Load, IP40, Plug-In Mount, AgNi, -40 to 55 deg C, 27 mm Height, 21 mmm Width, 40 mm Depth
