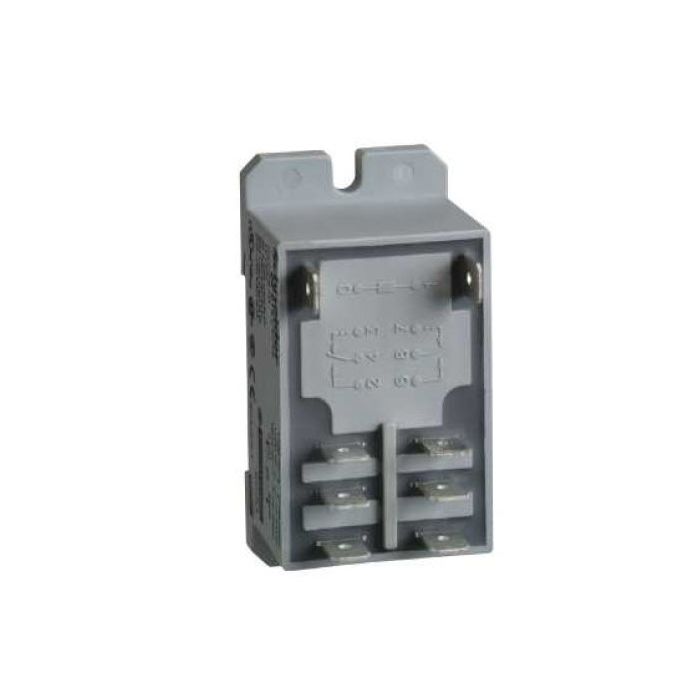

Schneider Power Relay DIN Rail Mounting 2NO 30A 120V Flat
Schneider Power Relay DIN Rail Mounting 2NO 30A 120V Flat
In stock
SKU
TEERPF-2AF7
Power Relay DIN Rail Mounting, 120 Volt AC, 30 Amp Flat, 2NO, 4250 Ohm, Operating Time: 25 ms, <=1200 Cycles/hr Under Load/<=18000 Cycles/hr No-Load, IP40, DIN Rail Mount/Panel, Plug-In, Silver Tin Oxide, -40 to 55 deg C, 68.5 mm Height, 33.7 mm Width, 39.2 mm Depth
| Features |
|
|---|---|
| Brand | Schneider |
| Range Name | Zelio RPF |
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | RPF2AF7 |
| Contact Configuration | 2 Normally Opened |
| Depth | 39.2 mm |
| Height | 68.5 mm |
| IP Rating | IP40 |
| Current | 30 Amp |
| Mounting Method | Din Rail/Panel/Plug-In |
| Contact Material | Silver Tin Oxide |
| Operating Coil Voltage | 120 Volt AC |
| Operating Cycles | <=1200 Cycles/hr Under Load/<=18000 Cycles/hr No-Load |
| Operating Time | 25 ms |
| Resistance | 4250 Ohm |
| Temperature | -40 to 55 deg C |
| Product Type | Power Relays |
| Width | 33.7 mm |
Description
Power Relay DIN Rail Mounting, 120 Volt AC, 30 Amp Flat, 2NO, 4250 Ohm, Operating Time: 25 ms, <=1200 Cycles/hr Under Load/<=18000 Cycles/hr No-Load, IP40, DIN Rail Mount/Panel, Plug-In, Silver Tin Oxide, -40 to 55 deg C, 68.5 mm Height, 33.7 mm Width, 39.2 mm Depth
