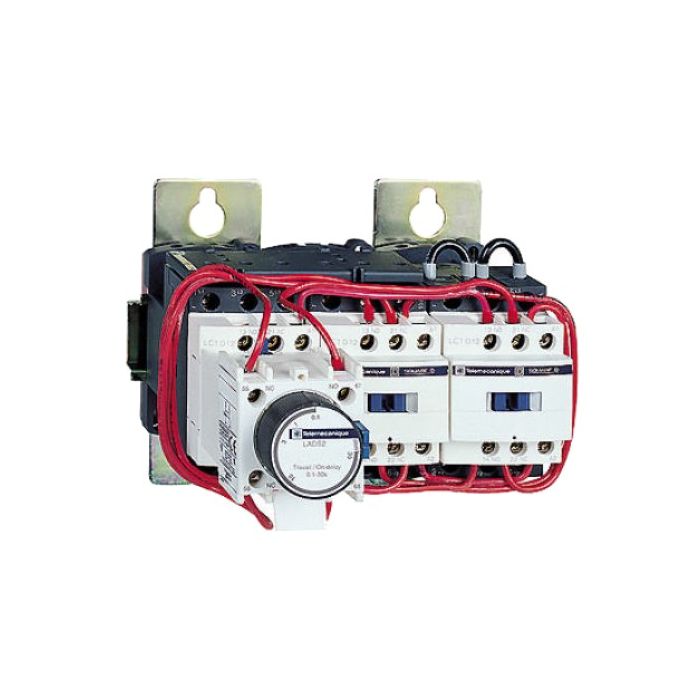

Schneider Motor Starter Star Delta 25/30kW 24V Open Unenclosed IP20
Schneider Motor Starter Star Delta 25/30kW 24V Open Unenclosed IP20
In stock
SKU
TEELC3-D32AB7
Motor Starter Star Delta, 690 Volt AC, 32 Amp, 50/60 Hz, 25/30 kW, 15 kW @ 220/230 Volt AC , 30 kW @ 415/440 Volt AC, 24 Volt AC, 3 x 3P Poles, 30 sec, Screw,3 x 1NO + 1NC, Open Unenclosed, IP20, 15 M Cycles Mechanical, 1.65 M Cycles Electrical, -40 to 70 deg C, 124 mm Height x 166 mm Width x 149 mm Depth, Overload Purchased Separately
| Brand | Schneider |
|---|---|
| Range Name | TeSys Model D |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LC3D32AB7 |
| Auxiliary Contact Rating | 3 x 1 Normally Opened & 1 Normally Closed |
| Coil Voltage | 24 Volt AC |
| Connection Type | Screw |
| Current | 32 Amp |
| Depth | 149 mm |
| Enclosure Type | Open Unenclosed |
| Frequency | 50/60 Hz |
| Height | 124 mm |
| IP Rating | IP20 |
| Motor Power | 15 kW @ 220-230 Volt AC /30 kW @ 415-440 Volt AC |
| Operating Cycles | 15 M Cycles Mechanical/1.65 M Cycles Electrical |
| Operating Temperature | -40 to 70 deg C |
| Please Note | Overload Purchased Separately |
| Product Type | Motor Starters Star Delta |
| Timing | 30 sec |
| Voltage | 690 Volt AC |
| Wattage | 25/30 kW |
| Width | 166 mm |
Description
Motor Starter Star Delta, 690 Volt AC, 32 Amp, 50/60 Hz, 25/30 kW, 15 kW @ 220/230 Volt AC , 30 kW @ 415/440 Volt AC, 24 Volt AC, 3 x 3P Poles, 30 sec, Screw,3 x 1NO + 1NC, Open Unenclosed, IP20, 15 M Cycles Mechanical, 1.65 M Cycles Electrical, -40 to 70 deg C, 124 mm Height x 166 mm Width x 149 mm Depth, Overload Purchased Separately
