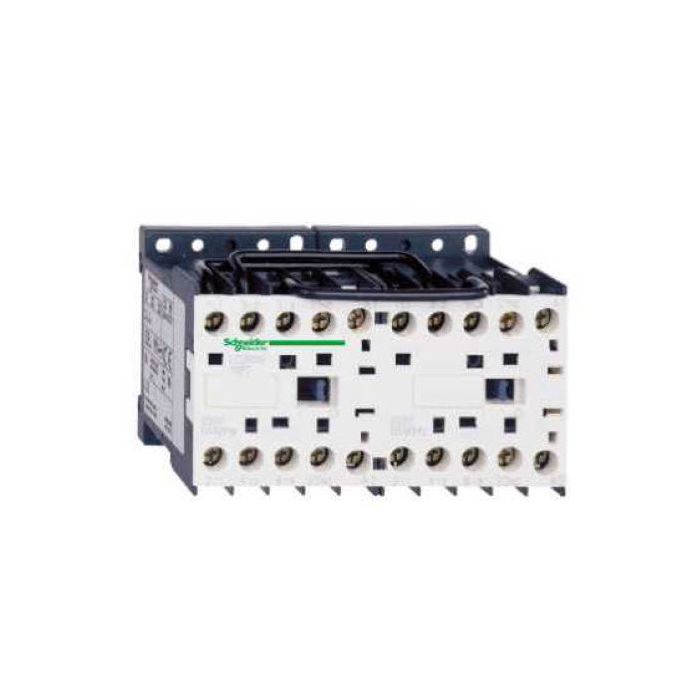

Schneider Contactor Reversing 3 Pole 4kW 9A 20/16A 24V 2NC Auxiliary DIN Rail/Plate Mount
Schneider Contactor Reversing 3 Pole 4kW 9A 20/16A 24V 2NC Auxiliary DIN Rail/Plate Mount
In stock
SKU
TEELC2-K0901B7
Contactor Reversing, 24 Volt AC, 2NC Auxiliaries, AC3 Rating (kW): 4, AC3 Rating (Amps): 9, AC1 Rating (Amps): 20 /16, 3 Pole, Operating Time: 10-20 ms Closing/10-20 ms Opening, Screw Clamp Terminal, IP20, DIN Rail/Plate Mount, -25 to 50 deg C, 58 mm Height, 90 mm Width, 57 mm Depth
| Features |
|
|---|---|
| Brand | Schneider |
| Range Name | TeSys Model K |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LC2K0901B7 |
| AC1 Rating (Amps) | 20/16 Amp AC1 |
| AC3 Rating (Amps) | 9 Amp AC3 |
| AC3 Rating (kW) | 4 kW |
| Contact Configuration | 2 Normally Closed Aux |
| Depth | 57 mm |
| Height | 58 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail/Plate |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 24 Volt AC |
| Operating Time | 10-20 ms Closing/10-20 ms Opening |
| Product Type | Contactors Reversing |
| Temperature | -25 to 50 deg C |
| Terminal Connection | Screw Clamp |
| Width | 90 mm |
Description
Contactor Reversing, 24 Volt AC, 2NC Auxiliaries, AC3 Rating (kW): 4, AC3 Rating (Amps): 9, AC1 Rating (Amps): 20 /16, 3 Pole, Operating Time: 10-20 ms Closing/10-20 ms Opening, Screw Clamp Terminal, IP20, DIN Rail/Plate Mount, -25 to 50 deg C, 58 mm Height, 90 mm Width, 57 mm Depth
