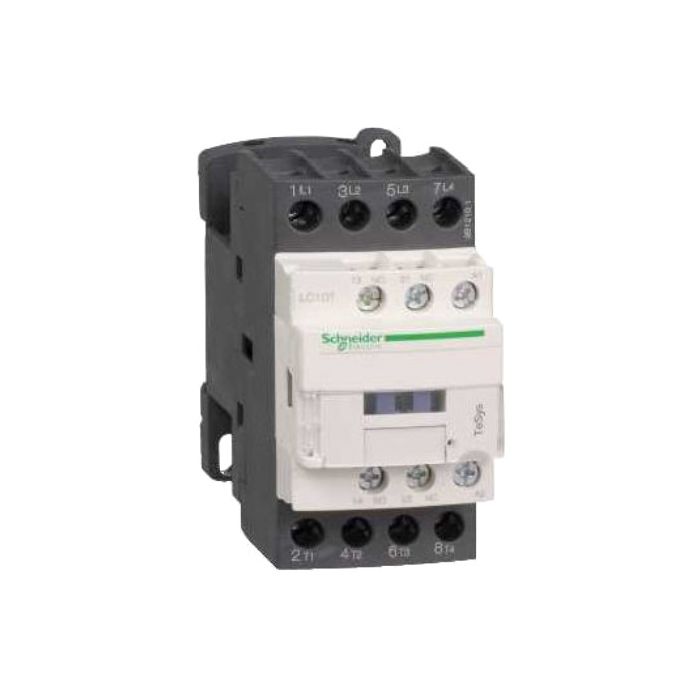

Schneider Contactor General Purpose AC Operated 4 Pole 9A AC3 20A AC1 415V 1NO-1NC Auxilary DIN Rail/Plate Mount
Schneider Contactor General Purpose AC Operated 4 Pole 9A AC3 20A AC1 415V 1NO-1NC Auxilary DIN Rail/Plate Mount
In stock
SKU
TEELC1DT20N7
Contactor General Purpose AC Operated, 415 Volt AC, AC3 Rating (Amps): 9, AC1 Rating (Amps): 20 at 440 Volt AC, 690 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 4 Pole, Operating Time: 53.55-72.45 ms Closing, 16-24 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 85 mm Height, 45 mm Width, 92 mm Depth
| Brand | Schneider |
|---|---|
| Range Name | TeSys Model D |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LC1DT20N7 |
| AC1 Rating (Amps) | 20 Amp AC1 |
| AC3 Rating (Amps) | 9 Amp AC3 |
| Contact Voltage | 690 Volt AC/300 Volt DC |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed Aux |
| Depth | 92 mm |
| Height | 85 mm |
| IP Rating | IP20 |
| Mounting Method | DIN Rail/Plate |
| Number Of Poles | 4 Pole |
| Operating Coil Voltage | 415 Volt AC |
| Operating Time | 53.55-72.45 ms Closing/16-24 ms Opening |
| Product Type | Contactors General |
| Temperature | -40 to 60 deg C |
| Terminal Connection | Screw Clamp |
| Width | 45 mm |
Description
Contactor General Purpose AC Operated, 415 Volt AC, AC3 Rating (Amps): 9, AC1 Rating (Amps): 20 at 440 Volt AC, 690 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 4 Pole, Operating Time: 53.55-72.45 ms Closing, 16-24 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 85 mm Height, 45 mm Width, 92 mm Depth
